Odovtos International Journal of Dental Sciences

On-line version ISSN 2215-3411Print version ISSN 1659-1046

Odovtos vol.24 n.3 San José Sep./Dec. 2022

http://dx.doi.org/10.15517/ijds.2022.49856

Clinical research

Effectiveness of the therapeutic laser in the syndrome of dysfunction of the temporomandibular joint of arthrogenic origin

Eficacia del láser terapéutico en el síndrome de disfunción de la articulación temporomandibular de origen artrogénico

DDS Josué Castillo-Madrigal1
http://orcid.org/0000-0002-3382-8985

DDS Amaury Pozos-Guillén2
http://orcid.org/0000-0003-2314-8465

MD Antonio Gordillo-Moscoso3
http://orcid.org/0000-0002-7351-4614

1Centro Avanzado de Enseñanza en Ortodoncia A.C. and CCPOSLP, Cuernavaca, México. https://orcid.org/0000-0002-3382-8985 apozos@uaslp.mx

2Facultad de Estomatología, Universidad Autónoma de San Luis Potosí, San Luis Potosí, México. https://orcid.org/0000-0003-2314-8465

3Facultad de Medicina, Universidad Autónoma de San Luis Potosí, San Luis Potosí, México. https://orcid.org/0000-0002-7351-4614

Abstract

Temporomandibular joint dysfunction syndrome (TMD), is a collective term characterized by symptoms involving chewing muscles, temporomandibular joint and orofacial structures. The efficacy of low intensity laser (LLLT) Gallium arsenide, in combination with a non-steroidal anti-inflammatory drug (NSAID) was evaluated. The main objective was to evaluate the maximum mouth opening without pain (ABM), arthralgia in the joint capsule through visual analog scale (VAS), laterality, protrusion, joint noises and count of tablets ingested per group. A controlled clinical trial (double-blind-randomized) was carried out in 30 subjects, who presented DTM of arthrogenic etiology; 5 applications of LLLT were made with wavelength of 810 nm, output optical power of 100-200 mw, emission PW=Pulsed (1-10,000Hz), dose of 10 jouls-cm², time of 1.44 minutes in mouth closed and with the mouth half open. One more follow-up appointment per month. There were two groups: experimental and control group, where different variables were analyzed (ABM, laterality, protrusion, VAS and sociodemographic). In the control group, a supposed LT application (not active) was made, for later comparison. Pain-free ABM was assessed in all appointments in addition to the other clinical parameters. Repeated measures analysis was performed with mixed models. Thirty patients were included of which 28 finished the treatment, two of them were lost during follow-up. The groups were similar in all their baseline variables. There were no statistically significant differences when applying the final multiple regression analysis, in the ABM, or in any other of the clinical parameters analyzed. LT was not effective in treating arthrogenic DTM.

Keywords Temporomandibular Joint Dysfunction Syndrome; Low-Level Laser Therapy; NSAIDs; Craniomandibular Disorders; TMJ Disorders; Gallium Arsenide Laser

Resumen

El síndrome de disfunción de la articulación temporomandibular (DTM) es un término colectivo caracterizado por síntomas que involucran músculos de la masticación, articulación temporomandibular y estructuras orofaciales. Se evaluó la eficacia del láser de baja intensidad (LLLT) Arseniuro de galio, en combinación con un antiinflamatorio no esteroideo (AINE). El objetivo principal fue evaluar la apertura bucal máxima sin dolor (ABM), la artralgia en cápsula articular a través de escala visual análoga (EVA), lateralidades, protrusión, ruidos articulares y conteo de tabletas ingeridas por grupo. Se realizó un ensayo clínico controlado (doble ciego-aleatorizado) en 30 sujetos, que presentaban DTM de etiología artrogénica; se les realizaron 5 aplicaciones de LLLT con longitud de onda de 810 nm, potencia óptica de salida de 100-200 mw, emisión PW=Pulsed (1-10,000Hz), dosis de10 jouls-cm², tiempo de1.44 minutos a boca cerrada y con la boca semiabierta. Una cita más de seguimiento al mes. Se tuvieron dos grupos: experimental y grupo control, donde se analizaron diferentes variables (ABM, lateralidades, protrusión, EVA y sociodemográficas). En el grupo control se hizo una supuesta aplicación LT (no activo), para posterior comparación. En todas las citas se valoró la ABM sin dolor además de los otros parámetros clínicos. Se realizó análisis de medidas repetidas con modelos mixtos. Se incluyeron 30 pacientes de los cuales 28 finalizaron el tratamiento, dos de ellos se perdieron en el seguimiento. Los grupos fueron similares en todas sus variables basales. No hubo diferencias estadísticas significativas al aplicar los análisis de regresión múltiple finales, en la ABM, ni tampoco en ningún otro de los parámetros clínicos analizados. El LT no fue eficaz en el tratamiento de la DTM de origen artrogénico.

Palabras clave Síndrome de disfunción de la articulación temporomandibular; terapia con láser de baja intensidad; AINE; Trastornos craneomandibulares; Trastornos de la ATM; Láser de arseniuro de Galio

Introduction

Temporomandibular joint dysfunction syndrome (TMD) is a term used to describe a series of clinical problems related to the temporomandibular joint (TMJ) and the masticatory muscles and other associated structures.Commonly related to trauma, neoplasia, stress, anxiety, occlusal interference, poorly positioned teeth, bruxism, tooth loss, poor bone base ratio, parafunctional movements, harmful habits, and intrinsic temporomandibular joint problems, which may or may not appear in combination (1). The main signs and symptoms are muscle and joint pain, noises in the joints (cracking and/or clicking), restriction of jaw range of motion, and changes in jaw movement pattern. It can present with tinnitus, vertigo, lack of muscular coordination and biomechanical imbalance of the cervical region (2). In addition, a variety of other symptoms can occur, such as abnormal swallowing and tenderness of the hyoid bone; these symptoms can compromise quality of life and even sleep. In severe cases, a headache occurs, as well as possible neck pain, vertigo, ear pain, muscle fatigue in the orofacial and cervical region in the skull region (1,3,4).

Epidemiological studies show that approximately 75% of the population has a DTM sign and 33% have at least one symptom (4). A specific etiology for DTM problems has not been identified (5).

Authors agree that substantial reduction in mouth opening and movements are strong indicators of DTM, as well as helping to distinguish between DTM and non DTM patients. Currently, the clinical examination is the "gold standard" for the diagnosis of DTM and involves the assessment of mandibular movements, palpation of masticatory muscles and the use of the stethoscope to evaluate joint sounds (6). According to the criterio of the American Association of Oral and Maxillofacial Surgeons ≥40mm maximum mouth opening without pain are classified as: clinically no degree of joint dysfunction and below this measure, it is considered with DTM (7). According to the main origin of pain and based on the presence or absence of joint noises, they have been classi- fied into myogenic, arthrogenic disorders and degenerative joint disease (8). The criteria for evaluating patients with DTM, under any therapy are: muscle and joint palpation and the range of mouth opening. Pain is considered the basis of every diagnosis and therapeutic approach. Muscle pain is an important clinical sign, in the affected muscle, which is present in most patients with orofacial pain and evaluated by palpation examination identifying trigger points (PT) or measuring instruments. During the clinical evaluation, the amount of pain experienced must be evaluated. The visual analog scale (VAS) is typically used to determine the level of pain (9).

Primary treatments should be conservative and reversible, and should focus on the control and reduction of symptoms. Nonsteroidal anti-inflammatory drugs remain the first rational treatment option for patients with pain of inflammatory origin, such as arthralgia. Piroxicam administered daily for 10 days has shown a reduction in the levels of several cytokinin (IL-1β, IL-2, IL-2R, IL-4, IL-6, TNFα, IFN-α) in patients with acute inflammation, showing no side effects (10). Other treatment modalities (including NSAIDs), consist of the use of pain relievers, muscle relaxants, cryotherapy, heat therapy, physical therapy, bite plates, chewing exercises, psychotherapy, acupuncture, manual therapy, ultrasound, relaxation, transcutaneous electrical nerve stimulation (TENS), low intensity laser therapy (LLLT), or ''photo modulation'' therapy. The LLLT has been brought under the spotlight ''recently'' due to its easy application, short treatment time, and few contraindications (1,3,4,11).

The effects of LLLT that have been highlighted are analgesics and anti-inflammatories (11). According to various studies, LLLT has shown beneficial results with respect to pain derived from DTM (2,3,4,11,12,13,14,15,16); it resulted in the immediate reduction of painful symptoms and a greater range of movements mandibular in the treated group (12). However, for others the LLLT has not shown be more effective than other therapies to simultaneously resolve both pain and impairment of orofacial functions in DTM (13).

The gallium arsenide laser is the most effective in the treatment of pain, inflammation and functional disorders in muscles, tendons, joints and profound dysfunctional problems in general. Reaching from 30 to 50mm in depth, depending on the type of tissue. It emits an infrared ray with a wavelength around 904nm. They always operate in very short pulses (100-200ns) commonly called ''super-pulse''. This pulsation constant simplifies the treatment time considerably and increases the safety for patients (14). The proposed mechanism of action is the increase in the production of β-endorphins, a triphosphate, which can result in muscle relaxation. ATP synthesis, enhanced by LLLT, leads to hyperpolarization and stimulus blocking, which decreases the induction of painful stimuli. In addition, inhibition of prostaglandin E2 and interleukin 1 beta will reduce pain induction. The improvement of circulation in peripheral blood vessels also plays an important role in reducing pain, accelerating the elimination of catabolites in the tissues (7,15).

Materials and methods

A controlled clinical trial (double-blind-randomized) was carried out in 30 patients, who presented DTM problems of arthrogenic etiology, who were admitted to the Clinic of Temporomandibular Dysfunction-Faculty of Dentistry, UASLP, México. Carrying out lower risk therapeutic procedures, respecting the norms dictated by the OMS and the Helsinki Conference in reference to experimental medical research carried out in humans. With acceptance of the Institutional Research Ethics Committee (CEIFE/022/09), the patients were informed of the purposes and risks of the study, verbally and through informed consent, signed voluntarily their participation.

Patients with a family hereditary history of cancer, pacemakers, hypertension, epilepsy, pregnant or lactating, with thyroid diseases, hypersensitivity to the drug formula (piroxicam), with gastric ulcer, hemorrhage or anticoagulant treatment, with kidney damage, with severe laterognathia (5mm or more) or patients with systemic hypermobility syndrome were excluded. Likewise, intra observer consistency was evaluated in the expert for the examination of positions and movements. For this, 15 patients who attended were selected, each of these patients was reviewed by the expert on 2 separate occasions. The R2.11.1 program was used: intraclass correlation coefficient analysis, Lin's concordance coefficient and repeatability coefficient of all measured variables were performed. The digital pressure used (in TMJ and orofacial muscles, initially) was calibrated and assessed bilaterally for 2 seconds using a digital scale (2 pounds for extraoral muscles/1 pound for intraoral and TMJ). All of these evaluations returned ranges from good to perfect. Except for consistency tests, pressure on the extraoral muscles, with a poor range. This leads to elimination of myogenic patients (characterized by pain in mandibular movements or in its function, and confirmation in its location, to palpation in masticatory muscles: masseter, temporal) giving way alone, to patients of the arthrogenic group (30 patients). Finally, selecting both sexes, between 18 and 60 years, mouth opening less than 40mm, joint pain of more than 6 months, audible click(s) when opening and closing the mouth, present to palpation by placing index fingers (calibrated/ consistency tests) in ATM zones (evaluation in both joints), without sounds of crepitus, nor mandibular blockage (subluxation or joint blocks).

Randomization was carried out using a list of block numbers (random) previously made (package R 2.9.1) that corresponded to the experimental group ''A'' (active LT+NSAID) and to the control group ''B'' (Non-active LT-''passive''+NSAIDs) according to the order of appearance of each patient, being marked (canceled), giving rise to the next one. For blinding (double blind), the evaluator was asked to leave the clinic for the 'application' of treatment (as appropriate). The application protocol was simulated in the control group (supposed laser application and lens placement) without being turned on (passive). Later, the clinical assessment was made. This was done at each visit by an expert (after clinical calibration-intra observer consistency tests). The evaluator was blinded to the hypothesis and the application.

On the other hand, an LLLT (Gallium Arsenide-Quantum ® IR810, therapeutic laser, Laser Systems, Qro, MX.) was used with the following specifications: main power: 120v, output optical power: 100-200 mw, wavelength: 810 nm, emission: PW=Pulsed (1-10,000 Hz), Divergence: 7.9°, Dose: 10 jouls-cm². The treatment consis- ted of five laser applications (three times, the first week and two the following week). One month later, the follow-up appointment was given, with a total of six appointments. The patient located the area of pain in the TMJ and the LLLT was applied on two occasions, one in a punctual manner (1.44 minutes) with the mouth closed and another, with the mouth semi-open with the ''sweeping'' techni- que at each of the ATMs. The clinical evaluation was carried out at each appointment, after placing the LLLT in the same way in the two groups. The dose is the most important parameter, it refers to the amount of energy per unit area in a tissue. In the calculation, the area was measured in cm². In the following formula, the ''D'' is the measurement in Joules per square centimeter (J/cm²) and is calculated as follows: Pxt/A=(100 mW x 104 seg.)1 cm² =10 Joules/cm² It is therefore recommended to use the laser 3-4 times a week, with moderate doses. Others recommend at least one application per week (14,16), coinciding with the treatment scheme carried out.

ABM, joint capsule (by means of VAS with millimeter ''ruler''), right and left laterality, protrusion (with vernier caliper), pathological noises (by stethoscope/number of sounds) in TMJ and count of capsules (NSAIDs) ingested for each group were evaluated. Regarding the ABM, the patient was asked to open his mouth as much as possible (without pain) and the measurement was made from incisal edge to incisal edge in the central area. The joint capsule force was digitally applied in the central-lateral part in order to find a PT, later it marked a line on a ruler, using VAS (0 to 100mm). The right and left laterality were recorded, that is; the movement of the jaw to the side to which it moves (working: right or left). A reference line was drawn in the upper central anterior teeth, going down to the lower anterior teeth on the buccal aspect, the patient was asked to bring his jaw to one side, as far as possible and another reference line was again marked with the same characteristic than the previous one, then the patient was asked to do the same, to the opposite side and marking a third line again. These lines corresponded to the laterality that were recorded. The protrusion was also registered, that is; movement carried out by the jaw when it is brought forward. A line was placed in the area of premolars from the upper to the lower, when it is in occlusion. Following this, the patient was asked to bring his jaw as far forward as possi- ble and another reference line was again marked, the distance between the lines being the recorded protrusion. The number of pathological joint noises (clicks) was recorded, using a stethoscope in the two joints, the patient was instructed to make repeated opening and closing movements. With a minimum: 0 (zero noises) and a maximum: 4 noises at the ATMs. Concerning the medication, in both cases the same presentation and dose of the NSAID (Piroxicam- 20mg tablet-oral use) was used at ''free demand'' (1 tablet every 12 hours/ maximum). The patient was monitored after finishing their treatment (in both groups) for one more months, in order to evaluate the changes produced and accumulation, if applicable.

A descriptive analysis of the data obtained with the statistical program, ''R'' version 2.11.1, was carried out with a confidence level of 95%, carrying out a mixed model analysis with the nlme package. A value of P<0.05 was considered significant. For the sample size, the following formula was considered: Number of factors x 10; therefore: 3 factors (treatment, age, sex) x 10=30 patients (15 patients per group).

Results

Among the 30 patients that were selected, 28 finished the treatment, two of them were lost to follow-up (appointment 6) of the experimental group. All patients had signs and symptoms of the arthrogenic group. The gender distribution of DTM was 20 women (80%) and 6 men (20%). The most frequent age in which DTM occurs was in the 20 to 30 years old interval with 10 patients (33.3%) with a mean of the 2 groups of 30.80 years old.

To establish the similarity and comparability of the groups studied, parametric and non-parametric tests were performed, depending on the normality of the data. The quantitative variables were analyzed by the: Student's t test, for variables with normal distribution or U Mann-Whitney-Wilcoxon test. Fisher's exact test was performed to analyze the qualitative variables. In demographic variables, both groups were similar concerning age and sex (P=077, P=065 respecti- vely) (Table 1).

Table 1 Data of the patients of the two groups of all the baseline variables.

Variable Total Group n=30 Laser Application n=15 Control Group n=15 P
Age (years old) (median ± IQR) 23.5 (IQR=20.5) 23(IQR=9.5) 33(IQR=23) 0.77*
Female Sex (%) 24 (80%) 13 (87%) 11 (73%) 0.65Ω
Maximum Mouth Openning (mm) 28.2±7.3 26.3±7.1 30.2±7.1 0.14∝
Left Laterality (mm) 7.7±2.7 7.1±2.5 8.4±2.9 0.19∝
Right Laterality(mm) 6.7±2.3 6.1± 2.3 7.2±2.2 0.20∝
Protrusion (mm) 5.95±2.1 5.96±2.3 5.93±1.9 0.96∝
Right EVA (mm) 44.1±27.1 28.5±13.4 33.0±13.1 0.9∝
Left EVA (mm) 39.9±28 34.6±26.2 45.57±29.5 0.3∝
Right Joint Noise (number). 1.0 (IQR=1.75) 1.0 (IQR=1.5) 1.0 (IQR=1.5) 0.64*
Left Joint Noise (number). 1.0 (IQR=1) 1.0 (IQR=2) 2.0 (IQR=1) 0.21*

∝Student's t; *U Mann-Whitney-Wilcoxon; ΩFisher's exact test; IQR= Interquartile range.

Regarding mandibular functional baseline parameters, such as: the main output variable ABM (to evaluate the efficacy of LT in DTM and to distinguish between those with DTM), they indicated no statistical differences in the experimental groups compared to control (P=0.14). The same for other functional variables such as: left laterality, right laterality, or protrusion (P=.19, P=0.20, P=0.96 respectively). Likewise, for pain interpreted by the patient, when performing digital palpation in both joints using VAS, there were not statistically difference (right, P=0.9; left, P=0.3). The same in case of left and right noises, when the two groups were initially compared, indicating that they were similar groups (right, P=0.64; left, P=0.21). Once the similarity between groups was established, we proceeded with results and inferential analysis. The baseline measurement, the mean found for ABM in the experimental group was 26.2mm with a 95% CI of 22.3 and 30.2mm, and at the last appointment a mean of 32.4mm with a 95% CI of 27.6 and 37.2mm. (Figure 1). In control group at the first appointment, the mean was 30.2mm with a 95% CI of 26.2 and 34.1mm. At the last appointment, a mean of 38.1mm with a 95% CI of 34.8 and 41.51mm.

The mean found for right laterality in experi- mental group was 6.13mm at the first appointment with a 95% CI of 4.88 to 7.38mm, at the last appointment there was a mean of 8.46mm with a 95% CI of 7.21 to 9.72mm. In control group at first appointment, the mean was 7.20mm with a 95% CI of 5.97 to 8.42mm, at the last appointment a mean of 8.60mm with a 95% CI of 7.34 to 9.85mm was presented. The mean found for left laterality in experimental group was 7.06mm in the first appointment with a 95% CI of 5.67 to 8.46mm, at the last appointment a mean of 9.00mm with a 95% CI of 7.58 to 10.42 mm was presented. In control group at the first appointment, the mean was 8.40mm with a 95% CI of 6.80 to 9.99mm. At the last appointment, a mean of 8.46mm was presented with a 95% CI of 6.95 to 9.97mm. Both are presented in Figure 2.

The mean found for protrusion in experimental group was 5.96mm at the first appointment with a 95% CI of 4.70 to 7.22mm, at the last appointment a mean of 6.53mm with a 95% CI of 5.35 to 7.71mm was presented. In the control group at the first appointment, the mean was 5.93mm with a 95% CI of 4.85 to 7.01mm. At the last appointment, a mean of 6.73mm was presented with a 95% CI of 5.74 to 7.72mm (Figure 3).

For the evaluation of the right joint capsule by VAS, 43.60mm was obtained in experimental group at the first appointment with a 95% CI of 26.93 to 60.27mm, at the last appointment a mean of 20.47mm was presented with a 95% CI of 9.18 to 31.75mm. In control group, at the first appointment, the mean was 43.53mm with a 95% CI from 30.16 to 56.90mm, at the last appointment a mean of 27.07mm with a 95% CI from 11.77 to 42.36 was presented. For the evaluation of the left joint capsule using VAS in experimental group it was 34.60mm at the first appointment with a 95% CI of 20.10 to 49.09mm, at the last appointment a mean of 20.20mm with a 95% CI of 8.95 to 31.45mm was presented. In control group at the first appointment, the mean was 45.13mm with a 95% CI of 29.33 to 60.93 mm, at the last appointment a mean of 25.07mm was presented with a 95% CI of 13.31 to 36.82 mm (Figure 4).

Regarding the NSAID that was offered, only 9 patients ever took piroxicam (30%), of these; 19 piroxicam tablets in group A (13%) and 24 tablets in group B (16%). No adverse reactions were reported in either group.

Finally, multiple regression analysis of repeated measures and mixed models was performed to explain the observed final mouth opening, finding that only the initial mouth opening and the observation time were important in the final model. The variables gender, age, treatment, and the treatment: time interaction were not significant for this model.

Figure 1 Graph showing ABM (in mm) over time (citations/6), red line (experimental) and blue line (control).

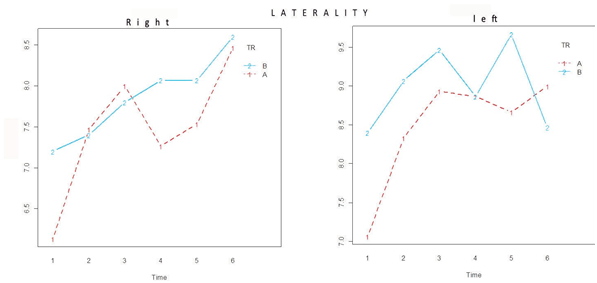

Figure 2 Graphs showing the laterality (in mm) in time, right and left (citations) of the two groups, red line ''A'' (experimental) and blue line ''B'' (control).

Figure 3 Graph showing protrusion (in mm) in the two groups over time (citations), red line ''A'' (experimental) and blue line ''B'' (control).

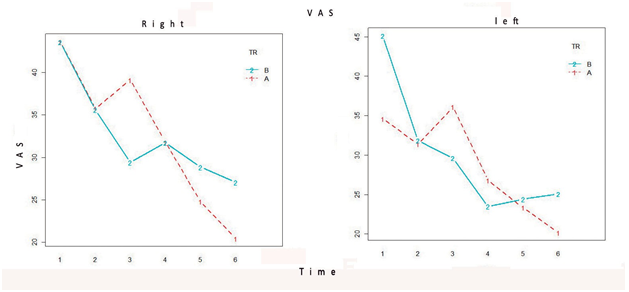

Figure 4 Graphs showing the right and left VAS (in mm) over time (citations), in the two groups, red line ''A'' (experimental) and blue line ''B'' (control).

Discussion

Studies have been concluded that LLLT has no detrimental effect on patients and could be a good option for patients interested in non-invasive therapy. It has been considered as a complementary option for the treatment of DTM, due to its effects: biostimulants, regenerative, analgesic and anti-inflammatory (16,17). However, in present study the results indicated that LLLT was not effective in treating DTM, functional parameters (ABM, laterality, protrusion) nor in reducing joint capsule pain (VAS) or TMJ noise compared to control group (NSAID), perhaps due to the "application protocol" used (irradiated dose, type of laser, wavelength, number of sessions) among others. One factor that can be found is that the dose irradiated with LT is very diverse, according to a meta-analysis, from 1.5 J/cm² to 112.5 J/cm² (3). In this study and in accordance with the dose recommendation (10 Joules/cm²) as the most important parameter. As well as the number of applications per week (3 to 4 times), we were able to note that the results were not positive in any of the variables measured, including VAS (pain reduction) or improvement in oral function (ABM, laterality, protrusion) (14).

In recent meta-analysis, the results of the DTM function, evaluated in terms of maximum active and passive vertical opening, lateral excursions and protrusion, indicated that the general effect favored LLLT over placebo but with a great diversity of parameters of irradiation (3). Other studies suggest that LLLT is effective for pain reduction in 6 sessions applied in 3 weeks, 1W, but without bone abnormalities (but with unclear methodology and a small sample) (15). As well as to improve orofacial function in patients with DTM, although with very different application schemes and types of lasers (GaAlAs, GaAs, HeNe, Nd: YAG, Diode laser, etc.) (3,4,12,14,15,16,17,18). In other study, two LLLT types and irradiations (two LED/experi- mental groups and one infrared/control) were compared in three groups. The first two with 18 J/cm², 9 J/per point and a third control group with 105 J/cm² and 4.2 J/per point. The irradiation parameters in the experimental groups were: the red LED group (630±10nm, 150mw) and the LED group (850±10nm, 300mw/cm²). The control group received infrared laser (780nm) with 70mw, 1.7 W/cm², applied in eight sessions, twice a week for the three groups. They concluded that there was a significant reduction in pain and an increase in maximum oral opening for all groups (P≥0.05). However, there was no significant difference between the different laser groups (19).

On the other hand, one of the possible reasons for the negative results that have been reported is the use of extremely low doses. The number of treatment sessions is another parameter that does not have an elaborate consensus. Most of the studies report 10 to 20 treatment sessions; however, doses higher than 700 mw applied it in 6 sessions with "positive" results, but did not include a control group (4,20). The significant reduction in pain reduction in masticatory myalgic muscles has also been recorded after the use of LLLT in various modalities ("photo modulation") and even a single application of LLLT, but without changes in ABM (9). The diversity of the ''application protocols'' can be clearly noted (20,21).

Others have documented that LLLT promotes positive effects in DTM, despite the differences due to: wavelength and energy density (dose) (13). Regarding the wavelength, the present study agreed with this report, in that; was not effective, using a similar application protocol with parameters of: 810nm, but with 3.4 J/cm² (in 4 points) and in sore muscles (it does not mention how many) and an increase to 12 sessions, three per week (against 5 sessions in our study), using 50 mw (half of what we used in our study) but this did not reduce pain, nor did it increase mouth opening (22). Other studies do not observe differences between groups or with limited results (21,22,23). In contrast, in a recent meta-analysis that concluded that LLLT can significantly improve the range of movements of the jaw of patients with DTM but has limited efficacy in reducing pain (24).

For ABM, in this study, there were no statistically significant differences between the groups studied, based on the mean periods. The average of the first ABM appointment in the experimental group was 26.2mm, in the last appointment a mean of 32.4mm was presented. In the control group at the first appointment, the mean was 30.2mm. At the last appointment, a mean of 38.1mm was presented. Coinciding with Shobha et al., when they compare LLLT (Gallium aluminum arsenide, 810nm, 0.1W) against placebo, but in 8 sessions for reduction of TMJ pain during function, suggesting that LLLT does not is better and what; LLLT applications ''tailored'' or ''more personalized'' will have to be carried out taking into consideration the multifactorial aspect of the DTM (25).

For Chellappa and Thirupathy, when compared transcutaneous electrical nerve stimulation (TENS) and LLLT (Diode laser, 672nm, 3 J per site, in four of them, 2 weekly) but in a variety of DTM problems (recurrent pain, chronic, reciprocal clicking, restriction to open the mouth or deviation of the jaw) significant improvement in the range of motion and pain relief was observed for both therapies. After analyzing the two methods, the values obtained after LLLT were significantly higher than those obtained after TENS therapy (P<0.01), including painless mouth opening (26). Regarding laterality and protrusion, we did not find significant statistical differences in this study, coinciding with others (21) as they did not find satisfactory results in lateral mandibular movements with an infrared laser, but with different parameters (780 nm, 30 mw, 10 s, 6.3 J/cm²) at three ATM points in 6 sessions. It can also be found where the LLLT, if it is effective in this regard (4,12,24) in this last meta-analysis 14 controlled clinical trials were analyzed, which indicated a significant increase in mandibular movements (ABM, protrusion and lateral movements) in patients with DTM.

Regarding the left and right VAS, there were no statistically significant differences between the groups analyzed, coinciding with others (21,23) or limited in chronic pain (24). However, for others, the effect in general favors LLLT, as shown by several studies (1,2,3,4,12,15,16,18,19,20,26,27,28). Other meta-analysis mentions the data found from 643 participants in 17 studies, which indicated a statistically significant reduction in total pain scores in the LLLT versus placebo groups but according to these reports at high reported doses (52.5 or 105 J/cm²). Whether the LLLT depends on the irradiation (dose) applied or no is still under debate. Sixty patients with Painful Myofacial Syndrome (having at least 1 active pain point in the masseter or temporal muscle) treated with GaAlAs laser (780 nm), applied continuously, twice a week, for four weeks. The energy (dose) was established at 25 J/cm², 60 J/cm² and 105 J/cm², respectively (in 3 groups). And 3 other groups were treated with placebo applications. Pain scores were evaluated. There were no significant differences between the application regimens used (P>0.05). Pain remission was time dependent (P<0.001). The analge- sic effect was similar in the LT groups and control groups (28). Regarding joint sounds, in our study no differences in the groups studied were found; however, as described by Sayed et al. a decrease in joint sounds, after 6 applications (3 times a week for 2 weeks) of LLLT (gallium arsenide; 904nm, 0.6 W, 60s, 4 J/cm²) in 20 patients, mostly of myogenic origin and 8 mostly of arthrogenic origin, ranging from 18.21% at the first appointment to 55.04% at the last appointment (sixth appointment). However, they did not have a control group; likewise, the sample size was ''small'' (20 individuals at the end) and 8 who left the study (4).

Even without establishing a protocol for TMJ pain, even with different groups within it, this report compares 3 groups with the use of piroxicam against LLLT (group: L/Laser, group: Pi/piroxicam and the group: Lpi/Laser+piroxicam), but indicates that there were no significant differences between the groups (P>0.1) (10).

Regarding the taking of the drug in this study, we found contrasting data, since when the drug intake was recorded (relatively low) and the degree of pain that had occurred in the last days (relatively high, according to some patients). No patient exceeded the recommended dose indications. The variable ''time'' in our study suggests an important role for the remission of DTM problems of arthrogenic etiology or similar classifications. Also described as "placebo" or "self-limiting effect" (28,29). When the use of piroxicam as an adjuvant to conservative treatment has been analyzed, it does not seem to significantly influence the result of conservative treatment. As an example, in this report, the experimental group (14 subjects) received conventional therapy (bite plane, occlusal readjustment, tranquility) with 10 mg of the drug orally, twice a day; and the control group (12 subjects) received the same treatment and a placebo (control group/12 subjects). The subjective reactions (subjective dysfunction and subjective pain) and objective (objective dysfunctional parameters/Helkimo index), almost all changed in the same positive way for the two groups. Only subjective pain symptoms decreased significantly more in the drug group (29). In contrast, according to this author, a combination of NSAIDs and physiotherapy for 4 weeks is effective as the primary treatment of patients with disc displacement without reduction and without bone changes. There was a 60% improvement in the treatment group compared to 33% in the control group over the full 4 weeks (7). If, pharmacotherapy with NSAIDs (naproxen) is compared against LLLT, in myofacial pain disorder syndrome, the naproxen group, neither the intensity of the pain, nor the maximum opening of the mouth had a significant improvement. While in the LT group, ABM increased and pain intensity decreased (P<0.05) (30). A placebo effect of LLLT (for the use of ''high technology'') has been reported, one month after the follow-up (31) as well as cumula- tive, which suggests a gradual improvement and reduction of pain at 15, 30, 60 days, remaining until after one year (21), which could not be identified in this study in the LLLT group (at 30 days of follow-up). This author reports that, at 30-days follow-up, the use of piroxicam was more effective than the use of LLLT, even when LLLT and piroxicam were combined (10). The joint sounds are due to a more complex effect that could not be resolved in the majority of our patients with TL.

Conclusion

In this study, we did not find statistical differences between the groups studied in terms of clinical functional parameters (ABM, protrusion, right and left laterality) nor in the mandibular parameters of arthralgia evaluated by the VAS scale. This study indicates that LT was not an effective tool (with parameters used) for the treatment of the measured variables, in patients with DTM of arthrogenic etiology.

Conflict Of Interest

The authors declare that they have no conflicts of interest.

Author contribution statement

Conception and designing of study: J.C.M., A.P.G., A.G.M.

Literature review: J.C.M., A.P.G., A.G.M.

Methodology and validation: J.C.M., A.P.G., A.G.M. Formal analysis: A.G.M.

Investigation and data collection: J.C.M.

Data analysis and interpretation: J.C.M., A.P.G., A.G.M. Resources: J.C.M.

Writing-original draft preparation: J.C.M., A.P.G., A.G.M.

Writing-review & editing: Josué J.C.M., A.P.G., A.G.M.

Supervision: A.P.G.

Project administration: A.P.G.

Funding acquisition: J.C.M., A.P.G.

Acknowledgements

Authors would like to acknowledge to the clinical collaboration of Dr. Gerardo de la Paz Domínguez and also thanks Dr. Peter B. Mandeville for the statistical support.

References

Carvalho F.R., Barros R.Q., Gonçalves A.S., Freitas P.M. Photobiomodulation therapy on the palliative care of temporomandibular disorder and orofacial/cervical skull pain: study protocol for a randomized controlled clinical trial. Trials 2019; 20 (1): 200. [ Links ]

Sousa D.F.M., Gonçalves M.L.L., Politti F., et al. Photobiomodulation with simultaneous use of red and infrared light emitting diodes in the treatment of temporomandibular disorder: study protocol for a randomized, controlled and double-blind clinical trial. Medicine (Baltimore) 2019; 98 (6): e14391. [ Links ]

Xu G.Z., Jia J., Jin L., Li J.H., Wang Z.Y., Cao D.Y. Low-level laser therapy for temporomandibular disorders: A systematic review with meta-analysis. Pain Res Manag 2018; 2018: 4230583. [ Links ]

Sayed N., Murugavel C., Gnanam A. Management of temporomandibular disorders with low level laser therapy. J Maxillofac Oral Surg 2014; 13 (4): 444-50. [ Links ]

Denucci D.J., Dionne R.A., Dubner R. Identifying a neurobiologic basis for drug therapy in DTMs. J Am Dent Assoc 1996; 127 (5): 581-93. [ Links ]

Masumi S., Kim Y.J., Clark G.T. The value of maximum jaw motion measurements for distinguishing between common temporomandibular disorder subgroups. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2002; 93 (5): 552-9. [ Links ]

Yuasa H., Kurita K.; Treatment Group on Temporomandibular Disorders. Randomized clinical trial of primary treatment for temporomandibular joint disk displacement without reduction and without osseous changes: a combination of NSAIDs and mouth-opening exercise versus no treatment. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2001; 91 (6): 671-5. [ Links ]

Okeson J.P. Tratamiento de oclusión y afecciones temporomandibulares. España: Edición 5ta. ed. Mosby Elsevier; 2003. [ Links ]

Costa S.A.P., Florezi G.P., Artes G.E., et al. The analgesic effect of photobiomodulation therapy (830 nm) on the masticatory muscles: a randomized, double-blind study. Braz Oral Res 2017; 31: e107. [ Links ]

De Carli M.L., Guerra M.B., Nunes T.B., et al. Piroxicam and laser phototherapy in the treatment of TMJ arthralgia: a double-blind randomised controlled trial. J Oral Rehabil 2013; 40 (3): 171-8. [ Links ]

Leal de Godoy C.H., Motta L.J., Garcia E.J., et al. Electromyographic evaluation of a low-level laser protocol for the treatment of temporomandibular disorder: a randomized, controlled, blind trial. J Phys Ther Sci 2017; 29 (12): 2107-11. [ Links ]

Mazzetto M.O., Hotta T.H., Pizzo R.C. Measurements of jaw movements and TMJ pain intensity in patients treated with GaAlAs laser. Braz Dent J 2010; 21 (4): 356-60. [ Links ]

Machado B.C., Mazzetto M.O. , Da Silva M.A., de Felício C.M. Effects of oral motor exercises and laser therapy on chronic temporomandibular disorders: a randomized study with follow-up. Lasers Med Sci 2016; 31 (5): 945-54. [ Links ]

Tuner J., Hode L. The laser therapy handbook. Sweden: ed. Prima Books AB; 2004. [ Links ]

Manaf T.A. Low-level laser therapy as a solution in the dental clinic: A review and case report. J Oral Laser Application 2007; 7: 65-73. [ Links ]

Ferreira L.A., de Oliveira R.G., Guimarães J.P., Carvalho A.C., De Paula M.V. Laser acupuncture in patients with temporomandibular dysfunction: a randomized controlled trial. Lasers Med Sci 2013; 28 (6): 1549-58. [ Links ]

Shukla D., Muthusekhar M.R. Efficacy of low-level laser therapy in temporomandibular disorders: A systematic review. Natl J Maxillofac Surg 2016; 7 (1): 62-6. [ Links ]

Marini I., Gatto M.R., Bonetti G.A. Effects of superpulsed low-level laser therapy on temporomandibular joint pain. Clin J Pain 2010; 26 (7): 611-6. [ Links ]

Panhoca V.H., Lizarelli R. de F., Nunez S.C., et al. Comparative clinical study of light analgesic effect on temporomandibular disorder (DTM) using red and infrared led therapy. Lasers MedSci 2015; 30 (2): 815-22. [ Links ]

Demirkol N., Sari F., Bulbul M., Demirkol M., Simsek I., Usumez A. Effectiveness of occlusal splints and low-level laser therapy on myofascial pain. Lasers Med Sci 2015; 30 (3): 1007-12. [ Links ]

Venancio R. de A., Camparis C.M., Lizarelli R. de F. Low intensity laser therapy in the treatment of temporomandibular disorders: a double-blind study. J Oral Rehabil 2005; 32 (11): 800-7. [ Links ]

Madani A.S., Ahrari F., Nasiri F., Abtahi M., Tunér J. Low-level laser therapy for management of TMJ osteoarthritis. Cranio 2014; 32 (1): 38-44. [ Links ]

Emshoff R., Bösch R., Pümpel E., Schöning H., Strobl H. Low-level laser therapy for treatment of temporomandibular joint pain: a double-blind and placebo-controlled trial. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2008; 105 (4): 452-6. [ Links ]

Chen J., Huang Z., Ge M., Gao M. Efficacy of low-level laser therapy in the treatment of DTMs: a meta-analysis of 14 randomised controlled trials. J Oral Rehabil 2015; 42 (4): 291-9. [ Links ]

Shobha R., Narayanan V.S., Jagadish Pai. B.S., Jaishankar H.P., Jijin M.J. Low-level laser therapy: A novel therapeutic approach to temporomandibular disorder - A randomized, double-blinded, placebo-controlled trial. Indian J Dent Res 2017; 28 (4): 380-7. [ Links ]

Chellappa D., Thirupathy M. Comparative efficacy of low-Level laser and TENS in the symptomatic relief of temporomandibular joint disorders: A randomized clinical trial. Indian J Dent Res 2020; 31 (1): 42-7. [ Links ]

Rezazadeh F., Hajian K., Shahidi S., Piroozi S. Comparison of the effects of transcutaneous electrical nerve stimulation and low-level laser therapy on drug-resistant temporomandibular disorders. J Dent (Shiraz) 2017; 18 (3): 187-92. [ Links ]

Carrasco T.G., Guerisoli L.D., Guerisoli D.M., Mazzetto M.O. Evaluation of low intensity laser therapy in myofascial pain syndrome. Cranio 2009; 27 (4): 243-7. [ Links ]

Van den Berghe L.I., de Boever J.A., Schaut- teet H. Double-blind clinical study of Piroxicam as adjuvant in the treatment of the pain and dysfunction of the temporomandi bular joints. Cranio 1986; 4 (4): 351-6. [ Links ]

Khalighi H.R., Mortazavi H., Mojahedi S.M., Azari-Marhabi S., Moradi Abbasabadi F. Low level laser therapy versus pharmacotherapy in improving myofascial pain disorder syndrome. J Lasers Med Sci 2016; 7 (1): 45-50. [ Links ]

Kaptchuk T.J., Goldman P., Stone D.A., Stason W.B. ¿Do medical devices have enhanced placebo effects? J Clin Epidemiol 2000; 53: 786-92. [ Links ]
