Coral reefs are complex marine ecosystems whose health relies on stable environmental conditions, though parallel to, regional coastal economies in many countries depend on coral reef ecosystems because they provide habitat for many marine species of economic and ecological importance (Falkowski, Jokiel, & Kinzie, 1990; Cesar, Burke, & Pet-Soede, 2003). For the last several decades, however, coral communities have been severely threatened by changes related to their environment, the effects of which have been further exacerbated by anthropogenic activities (Maina, McClanahan, Venus, Ateweberhan, & Madin, 2011). Coral communities are vulnerable to the effects of storms and hurricanes, which can cause massive mortality, because of the intense wave energy associated with these vents, and the sediment and nutrient inputs surplus resulting from the accompanying heavy rainfall (Crabbe, Walker, & Stephenson, 2008). Other environmental factors, such high levels of solar radiation and thermal anomalies, may encourage disease propagation, resulting in coverage loss (Maina et al., 2011). Moreover, corals respond to adverse thermal conditions by expelling their algal symbionts, which results in so-called coral bleaching (Lesser, 2006; Cunning & Baker, 2013). Though some of the above “natural” threats to coral may be increased by some of the anthropocentric threats described below: coral communities and its fauna (e.g. fishes, invertebrates, among others) are also sensitive to several factors resulting from the development of coastal areas, including those arising from unregulated coastal construction, urban development, deforestation, chemical contamination (i.e., runoff from pesticides, herbicides and fertilizers), overfishing, and destructive fishing methods, that in particular, or in synergistic association, may affect the stability of coral communities (Buddemeier, Kleypas, & Aronson, 2004; Costa, Nimmo, & Attrill, 2008; Hilmi, Safa, & Reynaud, 2012).
The role of nutrient enrichment in the degradation of coral reef communities is not well-studied for the Mexico Pacific Coast. Numerous studies have suggested that an increase in nutrient concentration supports a higher proportion of macroalgae in coral communities (Delgado & Lapointe, 1994; Adey, 1998), though this conclusion could not be confirmed in other studies (Larkum & Koop, 1997; Koop et al., 2001). However, according to some reports (Fabricius, 2005; Fabricius et al., 2013), both, coastal communities and marine coral reefs, have increased levels of nutrients, sediment and pollutants originating from the continent. Terrestrial runoff is therefore a growing concern for most of the 104 nations endowed with coral reefs (Spalding, Ravilious, & Green, 2001; Fabricius, 2005).
Of particular concern are the synergistic effects of the above-mentioned factors, in decreasing the resilience of coastal coral communities to climatic impacts (Micheli et al., 2012). Although it is known that, the dynamics to understand multiple stressor interactions can be highly complex in marine systems (Crain, Kroeker, & Halpern, 2008). Some authors have recognized that if the intensity of stress effects overcomes the coral reefs recovery ability, the inevitable result is a progressive loss of coral cover (Koop et al., 2001; Cesar et al., 2003; Lirman & Fong, 2007).
In this study, we examined the relationship between various water quality indicators and the status of the coral community known as La Boquita, in Juluapan Lagoon, Colima, México. Our results improved our understanding of the processes that alter the ecological balance of coral communities, especially, those associated with stress and the loss of coverage due to terrestrial runoff. We may recognize, if the conditions of increased terrestrial runoff throughout the year, have a more significant effect on the state of deterioration of La Boquita coral community.
Materials and methods
Study site:
Santiago Bay is located in Pacific central zone of Colima, México. The coral community known as La Boquita is situated in the Western part of the Bay at 19°12’25’’ N - 104° 28’52’’ W (Fig. 1). The coral patches comprising this community cover an area of 3 876.2 m2, extending from the surface to a depth of 3.5 m (Liñán-Cabello et al., 2008). The system includes the Juluapan Lagoon, which is connected to Santiago Bay through an artificial entrance channel built in 2003 that is 20 m wide, 75 m long, and between 0.3 and 0.8 m deep. The lagoon has an approximate area of 98 ha and is divided into two upper and lower basins (BI and BII, respectively), with a major and minor axis length of 2 km and 1.4 km, respectively. The two basins have a depth of 1 m at most sites, although some areas in the principal channel are up to 5 m deep; along the edges, the water is as shallow as 20 cm; its dynamics are dominated by tidal influence and forcing local winds (Gaviño-Rodríguez et al., 2011). Juluapan Lagoon is separated from Manzanillo Bay by a sand bar of 500 m long (La Boquita beach), on which tourist activities including restaurant service is developed. This lagoon receives the seasonal waters of the Miramar stream, during the rainy season, which occurs in summer from June to October (range: 600-1 300 mm), so the climate in the region is warm and sub-humid (range 18-28°C), (INEGI, 2009). La Boquita coral reef is under a variety of pressures related to human visitors due to its close proximity to recreational areas (Liñán-Cabello, HernándezMedina, Florián-Álvarez, & Mena-Herrera, 2008). However, the main impacts are thought to be the influx of warm water. Previous reports in the study zone have found wide fluctuations in salinity and superficial temperature (OlivosOrtiz et al., 2008).

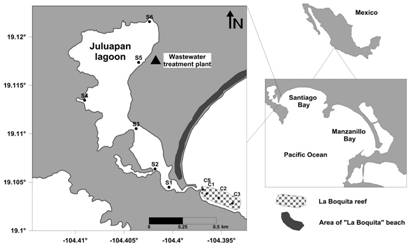

Fig. 1 Location of the La Boquita coral community on the coast of Colima, Mexico. S1-S6 mark the location of the sampling stations (temperature, salinity, nutrients, phytoplankton) within the Juluapan lagoon and the control station (CS) in 2011. C1, C2, and C3 indicate the location of the sampling stations on the coral (structure, composition, turbidity of water column, algal coverage) during September, November (2011), and January (2012).
Water quality:
During 2011 (12 twelve months of sampling), six monitoring stations inside of the Juluapan lagoon were established in order to observe the gradient of the distribution of the physicochemical parameters: three stations on the upper part, or BI, (S4 to S6) and three more in the lower part, or BII, (S1 to S3); a control station (CS) was located in the coral reef at a site close to the lagoon channel (Fig. 1). Between January and December of 2011, samples were monthly taken at the surface (20 cm deep) inside the lagoon, and at a depth of 1.0 m in the marine zone. Temperature and salinity were determined in situ with the eoscientific field multi-parameter instrument YSI85 (accuracy ± 0.1). To determine the concentration of dissolved inorganic nutrients (NO- 2+NO- 3, NH4 +, PO4 3- and SiO2), 200 mL samples were collected using a segmented flow autoanalyzer (Skalar SanPlus II) according to the methods of Strickland and Parsons (1972) and Grasshoff, Ehrhardt and Kremling (1999). From each sample, three aliquots of 50 mL were taken to have replicates in order to assess the reliability of the method. The stoichiometric ratio of nutrients in the water was evaluated according to the method of Justic, Rabalais, Turner and Dortch (1995).
Phytoplankton:
The phytoplankton abundance influences the availability of light that corals can use, and therefore it is an important parameter to determine. At the same locations described above, samples were collected in 1-liter bottles and fixed with Lugol. Subsamples (50 mL) were allowed to settle in counting chambers for 24 h, and the phytoplankton in an appropriate field or transect, was subsequently enumerated and taxonomically identified using a Motic AE31 inverted bright-field microscope at a 200-400× magnification according to the method of Throndsen (1995). The limit of detection of the Utermöhl method is 20 cells/L (Utermöhl, 1931). Cell dimensions were measured using Motic Images Plus, Version 2.0. At least 25 randomly selected cells were analyzed for each of the most abundant species, as well as 10-15 cells for all other determinations. Cell biovolumes were calculated based on the approximation to the nearest geometric shape, as proposed by Hillebrand, Dürselen, Kirschtel, Pollingher and Zohary (1999). Cell carbon (C) content was estimated with two carbon-to-volume ratios, one for diatoms and one for all other algal groups (Menden-Deuer & Lessard, 2000).
Primary productivity constituted an indicator of phytoplankton abundance, but additionally, during 2012, we monitored primary productivity at three surface stations in the La Boquita coral reef, which were located close to the lagoon channel entrance (C1), at moderate (C2) and large (C3) distances from it (Fig. 1). Water samplesn were fixed immediately after collection with Lugol solution.
Status of the coral community:
The biological information was collected in each of the three stations and three monthly samplings (September and November 2011 and January 2012) of the reef referred to above, we consider for sampling of three of the eight largest coral structures/headlands of this community, which are similar in terms of composition and depth (Liñan-Cabello et al., 2008; Reyes-Bonilla et al., 2013): the first was the closest to the channel communicating with Juluapan lagoon, whose extension is ~489 m2 (C1); the second was in the middle of an area of approximately ~746 m2 (C2); and the third was the farthest intercom, with an area of ~334 m2 (C3). Three line intercept transects (LIT), 30 m length, and perpendicular to the coast were established in each station (GCRMN Hill et al., 2004). The parameters indicative of status of coral community were evaluated covering an area of 60 m2 around each transect (180 m2 by the station, see below). Considering the low depth associated with the three stations (surface to 3.5 m), all underwater surveys were conducted under high-tide conditions (height: 75 cm). During September, November 2011 and January 2012, digital photographs and videos were taken at each sampling site, using a Canon PowerShot S80 camera and a JVC (model 601244) digital video camera equipped with an underwater housing, respectively. Fish abundance was evaluated by using a stationary visual census (Hill & Wilkinson, 2004). Turbidity was measured at the beginning, middle, and end of the LIT in each coral structures with a Secchi disk; evidence of fishing activities (i.e. objects fishing by transect), signs of settling (% coral covered by sediment), and algal coverage (%) were measured via the visually, as this is the standard method recommended by the Global Coral Reef Monitoring Network (GCRMN) (Hill & Wilkinson, 2004).
In addition, we used the CoralWatch global monitoring program to evaluate the health status of the coral community (Siebeck, Marshall, Klüter, & Hoegh-Guldberg, 2006). This widely used method was previously applied in the study area to evaluate the status of coral populations of Pocillopora spp. (Liñán-Cabello et al., 2011). In the present work, coral color was evaluated in situ and compared to the CoralWatch chart, which identifies four basic coral morphotypes that facilitate the evaluation of coral hue (four series, B-E), each divided into six color fields (1-6), ranging from near-white to dark brown. Each color square on the chart was related to the density of zooxanthellae, an important indicator of coral health and thus the health of the entire reef (Siebeck et al., 2006), according to previous studies that have tested density of symbiont vs color in the Eastern Pacific (Liñán-Cabello et al., 2011; Marshall, Kleine, & Dean, 2012).
Finally, sedimentation on coral structures was examined at each sampling station by two placing settlers with a surface area of 200 cm2, at a depth range of 0.70-1.50 m (Liñán-Cabello et al., 2011). These collectors were placed at each transect area for periods of 15 days to a month, from September 2011 to January 2012. The samples were dried and sieved, and the gravel, sand, and silt components were measured. The ratios of these sedimentary components were determined, and the sum of their weights was used to calculate the sedimentation rate (g/month). This is a method commonly used to study coral sediment composition (GCRMN) (Hill et al., 2004).
Normality and homogeneity were evaluated using Kolmogorov-Smirnov and Bartlett tests, respectively (Zar, 1994). One-and twoway ANOVAs were employed to evaluate the differences between each parameter, versus each station through the period, and employing subsequent Tukey test with a 0.05 significance level, using the Statistica (Version 6.0). The limit for rejection or acceptance was α= 0.05.
Results
Water quality:
Salinity in both basins remained around 33.5 PSU until June (Fig. 2A and Fig. 2B). From July onward, large variations were detected, in this month a minimum (26.4 PSU) and a maximum (27.2 PSU) was detected in BI (Fig. 2A); also in July in BII, the salinity had a minimum of 34.1 and a maximum of 34.7 PSU. In October, the minimum salinity (1.8 PSU) of the entire period was detected in BI, while in BII, it was 7.6 PSU. In CS (Fig. 2C), the average salinity was 33.2 PSU for almost all months, except in September and October, when the minimum (28.8 PSU) was detected. In October, CS and S3 (BI) showed significant differences from the other stations and months (P < 0.05).
In general, the water temperature at the six sampling stations inside Juluapan Lagoon, exhibited the expected seasonal variations, with higher temperatures in summer (maximum in August, BI: 33.5 °C) and lower temperatures in winter (minimum in January, BII: 24.0 °C, Fig. 2D). Also a general gradient consisting of higher temperatures in the inner part of lagoon (BI: S4-S6), that decreased towards the lower part (BII: S1-S3) and reached their lowest at the CS (Fig. 2D). Temperatures at CS reaching a maximum of 31.1 °C in August and a minimum of 22.8 °C in March (Fig. 2D). Significant differences were detected only in temperatures between CS and the average of the BI (two-way ANOVA, by season and station, P < 0.05) between summer and winter.
The average nutrient concentration at BI or the upper part of the lagoon, showed the higher concentrations of nutrients and also an increasing tendency during and one month after the rainy season (July to November), with the maximum occurring in October (23.4 µM NO2 -+NO3 -, 8.9 µM NH4 +, 14.4 µM PO4 3- and 54.8 µM SiO2 µM; Fig. 2A, Fig. 2E, Fig. 2H). At BII or the lower part of the lagoon, the trend regarding these nutrients was the same but with lower average values at S1 (March: 6.2 µM NO2 -+NO3 -, 1.7 µM NH4 +, 1.2 µM PO4 3-, and 11.8 µM SiO2 µM; Fig. 2B, Fig. 2F, Fig. 2H). The overall nutrient concentrations throughout the year tended to be substantially higher inside the lagoon than at the CS, particularly in October during the rainy season, when the greater influence of continental runoff produced maximum concentrations (10.3 µM NO2 -+NO3 -, 2.2 µM NH4 +, 3.7 µM PO4 3-, and 19.2 µM SiO2; Fig. 2C, Fig. 2G, Fig. 2H); related to this, significant differences (P < 0.05) between the values of CS and the values of the upper part of the lagoon (S6-BI), were observed during all sampling period.

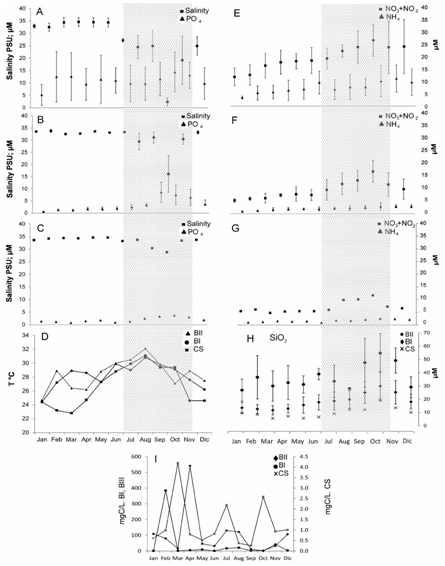

Fig. 2 Various parameters of water quality; shaded area represents rainy season. A (BII) ■ Salinity, ▲ PO4. B (BI) ■ Salinity, ▲ PO4. C (CS) ■ Salinity, ▲ PO4. D Temperature ▲ (BII), ● (BI) and ■ (CS). E (BII) ■ NO3+NO2, ▲ NH4. F (BI) ■ NO3+NO2, ▲ NH4. G (CS) ■ NO3+NO2, ▲ NH4. H SiO2 ● (BII), ♦ (BI) and X (CS). I contribution of phytoplankton to Carbon ● (BII), ♦ (BI) and X (CS).
A stoichiometric analysis was performed in order to identify the possible alteration in the proportionality of nutrients that occur within the lagoon system, because of seasonal and continental contributions, and to determine if this may influence the adjacent coastal area where the coral reef is located. This showed no limitations regarding dissolved inorganic nutrients (DIN, P, or Si) within the lagoon because the atomic ratios were Si:DIN >1 and DIN:P >16. By contrast, during the rainy season (July to October), results were DIN:P = 4.0 and the DIN:Si = 0.8, suggesting either DIN limitations or an excess of P and Si in the marine coral area.
Phytoplankton:
The contribution of phytoplankton to the C content of Juluapan Lagoon during the study period was higher at BII than at BI, in part because of the occasional phytoplankton bloom in the former. In February and April, the dinoflagellate Scrippsiella sp. Was dominant in both basins but especially in BII. Peridinium quinquecorne was abundant through the year, mainly in BII. At CS, the C content was lower than in the lagoon, but was as high as 4.2 and 2.6 mgC/L during March and October, due to blooms of P. quinquecorne (Fig. 2I).
Primary productivity samples obtained in December 2012 at the CS in the coral reef, had high organic matter content and high cell abundance, with values ranging from 21.7 mgC/L and 1.52 × 106 cells/L at C3 to 45.9 mgC/L and 3.58 × 106 cells/L at C1 (data not showed).The optical density (measured at wavelength) values declined accordingly from C1 (0.22) to C3 (0.12).
Status of the coral community:
The data obtained at each sampling station during the three samplings (September, November 2011, and January 2012) are summarized in Table 1. At C1, in general, the live coral patch attached to the mouth of the Juluapan Lagoon, was significantly affected respect to C3 station (P ˂ 0.05). In C1, there were also more significant values (P ˂ 0.05) for settling, increased turbidity, and macroalgae abundance. Additionally, abandoned fishing gear was seen at C2. Exceptionally, we observed that during low-tide conditions, turbidity restricted visibility to 18 cm and 80 cm at C1 and C2, respectively. At C3, regardless of the tidal conditions, visibility was unimpeded. It should be noted that C1 showed from 27.9 to 24.5% of sediment cover during the three sampling periods. Based on the total of indicators, we calculated a 17% loss of coral coverage.
Table 1 Various indicators of population status at three locations in La Boquita reef
| - | September | - | - | November | - | - | January | - | |
|---|---|---|---|---|---|---|---|---|---|
| Parameter | C1 C2 | C3 | C1 | C2 | C3 | C1 | C2 | C3 | |
| Turbidity (cm) | 18.4a ± 21.1 80.2b± 15.7 | 220b± 42 | 32a± 18.4 | 193b± 98 | 220b± 32 | 37a± 52.2 | 168b± 54 | 220b± 62 | |
| Abundance of algae on coral (% coral covered by algae) | 60a± 11.3 | 19b± 9.2 | 22b± 11 | 58b± 21 | 27b± 11 | 29b± 13 | 62a± 23 | 22b± 98 | 11c± 2.1 |
| Abundance offish (no. fish / transect.) | 18a±7.5 | 22.5a±8.91 | 14b± 12 | 12b± 8.1 | 22a± 16 | 12b± 7.0 | 14b± 6.1 | 22a± 19.1 | 19a± 9.5 |
| Live coral (% live coral) | 60a± 22.5 | 92b± 23.6 | 97b± 14.8 | 66a± 0.69 | 94b± 13.6 | 90b± 26.2 | 62a± 9.1 | 95b± 14.5 | 95b± 13.4 |
| Evidence of fishing (objects fishing / transect.) | 3.0a± 0.69 | 3.0a± 1.6 | 2.3a± 2.8 | 4.9a± 0.34 | 2.5a± 0.76 | 3.5a± 1.0 | 2.5a± 0.85 | 7.8b± l.4 | 2.3a± 2.1 |
| Signs of settling(% coral covered by sediment) | 28a±12.1 | 2.2b± 0.76 | 1.9b± 0.27 | 24a± 5.8 | 2.0b± 0.68 | 1.3b± 0.23 25b± 11.2 3a± 0.69 ± 0.59 1.4b± 0.63 | |||
Mean values with different letters are significantly different (P < 0.05). One-way ANOVA test. Data are means ± SD. Significant differences are shown by an asterisk (P < 0.05); n= 3 (Turbidity), n=180 (other parameters).
According to our macroalgae observations at the three lagoon stations, C1 had the highest abundance of the genus Bossiella and other types of algae-type turf; the latter were associated with a higher abundance of coral sediments. Stegastes acapulcoensis, Sufflamen verres, Thalassoma lucasanum, and Microspathodon dorsalis were most abundant fish species.
Figure 3 summarizes the results of the three sampling stations with respect to the CoralWatch classifications. C1 coral were characterized only by colorations 1 and 2, mostly with the hues E and D. In C2, coral coloration was between 2 and 4, with some specimens of hue B. In C3, coral color reflected a better community status, with a larger proportion of colorations 4, 5, and 6, within hues D, E, and B. An analysis of the sediment ratio (gravel:sand:silt), at the three sites, yielded values of 1.0:0.33:0.75 at C1, 1.0:2.0:2.04 at C2, and 1.0:2.3:1.4 at C3 (Fig 4).

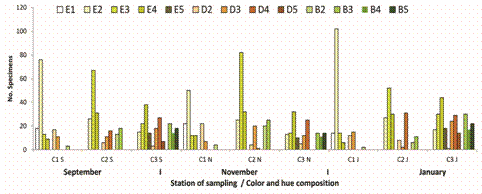

Fig. 3 Color fields and hue composition of coral morphotypes at C1 (next to the communication between the bay and the lagoon, n = 441), C2 (middle zone, n = 564), and C3 (opposite side, n = 594) during September (S) 2011, November (N) 2011, and January (J) 2012.
Discussion
The temperature inside the lagoon and in the coral area showed a seasonal variation, with peaks in August and wider variations in BI than in BII and lower temperatures in the CS. The warmer temperature in the upper lagoon zone could be due to less tidal exchange and thus increased water residence time and to its shallower depth. Other studies that included the CS (Liñán-Cabello et al., 2008; Olivos-Ortiz et al., 2008; Rivera-Vilarelle, 2011) reported the same range in surface water temperature at this site during an annual cycle; thus, the thermal influence caused by water discharge from the lagoon, can be a potential source of disturb that explain the observed decline in various population indicators of the coral community. However, temperature variation is related to salinity, because the shallow inner zones are also the sites of higher salinity, up to 34.7 PSU (BI and BII) until June. As the rain starts, the salinity in both basins decreases and the variability increases (July to November). This pattern is, in part, explained by the annual storms, which alter the salinity of the entire lagoon. Indeed, Hurricane Jova hit the study area in October, resulting in a salinity minimum of 1.0 PSU (S5) in BII and a very low salinity of 7.6 PSU in BI (S1), whereas in the CS, located on the west side of the reef and unaffected by the storm, the salinity during this same period was 28.8oC. This recurrent pattern of intense rainfall, with as much as 400 mm recorded in the region (SMN, 2011), accompanied by large decreases in salinity can, through continental discharge, cause abrupt changes in salinity and thus negatively impact the coral community (Ban, Graham, & Connolly, 2014), our results, this variable could be associated with the lack of healthy corals in the area near the Juluapan Lagoon effluent. Related to this, it was considered that the corals are osmo-conformers, gaining water and becoming iso-osmotic with their surroundings when exposed to hyposaline conditions (Titlyanov et al., 2000). It is for this reason that in a hypotonic medium, different disturbances at the cellular level, including damage to mitochondria, have been reported (Moyes, Moon, & Ballantyne, 1986; Martínez, Pardo, Flores-Herrera, & EspinosaGarcía, 1995). More specifically, Downs et al. (2009) reported that hypo-saline conditions can cause an oxidative stress response in both the host and the dinoflagellate, and that this can synergistically increase the damage to biomolecules via oxidative stress. In this sense, we can consider that as other environmental variables considered in this study, the decrease in salinity levels can cause a significant (negative) physiological effect on coral communities.
The high concentration of nutrients in the lagoon (BI and BII) is due to three factors: a) during the rainy season, the runoff from fertilizer on adjacent agricultural lands related to seasonal crops (mango, banana, corn, bean, tomatoes) (INEGI, 2009); b) the use of the lagoon as a receiving body for flows derived from a wastewater plant (primary treatment) located in a nearby residential area with an average daily effluent of 10 L/s (CONAGUA, 2011), and c) the re-suspension of sediments with a high organic matter content generated by the tides and winds (Gaviño-Rodríguez et al., 2011). For example, during the rainy season, the increased continental runoff resulted in high nutrient concentrations in La Boquita coral community. During the October peak, NH4 +, PO4 3-, and SiO2 concentrations were one order of magnitude higher than those reported for the central part of Santiago Bay (Olivos-Ortiz et al., 2008). The contribution of continental discharges and the alterations due to anthropogenic activities (Turner, Rabalais, & Dortch, 2003), can be expected to lead to the eutrophication of the lagoon, along with the further exportation of nutrients to adjacent marine areas. This was evidenced by the stoichiometric relationship showing an excess of PO4 -3 and SiO2 and thus changes in the water column, with subsequent major changes in the structure of the coral reefs, which could have as a final result in loss of coverage, referred to below.
Increases in nutrient concentrations (> 5 µM NO3 -, 2.5 µM PO4 3-) in coral reef communities have been significantly related to increases in the load of suspended material, which can promote algal growth and macroalgal abundances, as well as trapping sediments and thus followed by a sedimentation increase (Fabricius et al., 2013). Bioerosion has been related to low coral recruitment and ultimately to declining biodiversity due to high productivity and low light penetration, which affects water quality (Ferrier-Pagés, Gattuso, Dallot, & Jaubert, 2000; Nordemar, Nyström, & Dizon, 2003; De’ath & Fabricius, 2010; Le Grand & Frabicius, 2011; Fabricius et al., 2013). Similarly, Vermeij et al. (2010) reported that for Caribbean coral Orbicella (cf. Montastraea) annularis, local nutrient enrichment promoted an overgrowth of turf algae (multi-species communities of small marine macrophytes), which reduced the coral fitness, because these algae affect the average effective photochemical efficiency of neighboring coral. In our monitoring, we were able to verify these effects in the part of enriched waters, particularly for the turbidity and abundance-of-algae indicators for the sampled months. It was possible to observe that the turbidity was significantly lower at the C1 station in relation to other stations, while the abundance of algae remained significantly higher. This increase in turbidity in this area of the reef had been previously reported for 2007 by Liñán-Cabello et al. (2008).
In the study area, the constant supply of eutrophicated water from the lagoon, evidenced by the high concentrations of DIN, P, and Si (10.3 µM NO2 -+NO3 -, 2.2 µM NH4 +, 3.7 µM PO4 3-, and 19.2 µM SiO2), when compared with the reported values in the adjacent bay area (4.2 µM NO2 -+NO3 -, 0.2 µM NH4 +, 0.8 µM PO4 3-, and 4.9 µM SiO2) (Olivos-Ortiz et al., 2008), can support high phytoplankton abundance (until 1.6 x105 cells/L around CS) similar to values reported in Santiago bay locations far from continental runoffs, with values of 1.5x102 to 2.2x103 cells/L (Quijano-Scheggia et al., 2013). Together with dissolved solids in the water column, these blooms caused a shadow effect that negatively impacted the baseline requirements for zooxanthellae photosynthesis, with further negative effects on coral, such as decreased calcification, increased mucus production, coral bleaching, and even mortality (Walker & Ormond, 1982; Telesnicki & Goldberg, 1995; Anthony & Fabricius, 2000). This scenario is consistent with our observations since in our various CoralWatch records, it was observed that the station C1 presented many specimens with colorations 1 and 2, and denoting paleness and poor health condition in hues E and D, whereas in C2 and C3 were observed more hues and colorations of 3, 4, 5 which could denote variety of hues and more zooxanthellae aggregation. According to the abundance of coral morphotypes in the three monitored months, it was possible to see that this abundance profile was maintained. In an assessment of the restored Bay of Carrizales, located 7 km from the study area, all four hues of the CoralWatch scale were found in the coral community. Likewise, changes were observed in hues of wild populations with respect to the time of year; organisms undergoing restoration were unchanged from their original hues (E and B) (Liñán-Cabello et al., 2011).
In a study on La Boquita coral community during 2012, Laurel-Sandoval et al. (2013), who used Massive Sequencing Techniques for the amplification of 16S rRNA coral tissue, identified a total of 28 phyla, 59 classes, 119 orders, 245 families, 600 genera and 24 bacterial species in the Pocillopora capitata coral in La Boquita and Carrizales coral communities. The sampling of these specimens was performed using the CoralWatch scale corresponding to morphotypes: partially bleached (hue 2), pale (hue 4), and normal (hue 6). Also, the presence of the genus Serratia was associated with mucus in both specimens from La Boquita, which was an indicator of bacterium anthropogenic pollution (Patterson et al., 2002). However, Laurel-Sandoval et al. (2013) reported that its greatest abundance was associated with morphotypes of partially bleached coral (hue 2), which along with hues 1 and 3, are most prevalent in species with the greatest intensity of coloration in La Boquita. The presence of Serratia in Carrizales also suggests that there is some anthropogenic influence in Carrizales, despite its location at 7 km away from areas of anthropogenic influence.
As shown by Wiedenmann et al. (2013), nitrogen enrichment can induce the replacement of phospholipids by sulpholipids in zooxanthellae. A recent study that assessed the impacts of nutrient enrichment on coral reefs concluded that, increased nutrient levels are linked to the appearance and severity of diseases in coral communities (Risk, 2014). An in vitro investigation by Dunn, Sammarco and LaFleur, (2012) showed that high concentrations of phosphorus have a beneficial effect on the morphological indicators associated with the growth of Acropora muricata. As previously reported for other coral species (Koop et al., 2001; Lirman & Fong 2007), phosphate was shown to enhance coral growth by increasing zooxanthellae density, and thus photosynthetic production.
However, Dunn et al. (2012) also found that in the presence of high phosphate concentrations, skeletal density decreased over time and was significantly lower in the high-phosphate treatment group. The observed effect may be due to phosphate binding to the calcifying surface, resulting in a porous and structurally weaker calcium carbonate/calcium phosphate skeleton.
In a recent study (Delgadillo-Nuño, LiñánCabello, Reyes-Gómez, & Soriano-Santiago, 2014) comparing the microstructure of P. capitate from La Boquita reef from different regions exposed to the same depth and oceanic dynamics, a deterioration in the roughness patterns of the skeletal surface of La Boquita coral was noted, likely reflecting the fragility of the coral in terms of breakage and the difficulty of recovering from adverse conditions. Similar findings were obtained in the previously mentioned study of Pocillopora during a program of restoration (Islas-Peña, Liñán-Cabello, & Torres-Orozco, 2013). In addition, in a report on different Pocillopora spp. communities along the Pacific Coast of Mexico, specimens from La Boquita, whether they were from surface areas or maximum depths, had higher chlorophyll a concentrations, in both normal and pale-appearing coral than were seen in the same morphotypes collected at similar depths from localities not exposed to terrigenous effluent (Liñán-Cabello, Flores-Ramírez, Zacarias, Robelo, & Lezama-Cervantes, 2006). Similarly, in a study conducted in the summer and winter of 2007, Liñán-Cabello et al., (2010a), compared chlorophyll a concentrations and the density of zooxanthellae in P. capitata, exposed either to the Juluapan Lagoon effluent or located at a distance of 120 m away from the source of the effluent, no statistical differences in winter (dry season) were found; whereas during the rainy summer, when the nutrient supply was greater, significantly higher values were recorded in the effluent-exposed water compared to those of the distant area.
In their assessment of community assembly during the restoration process in La Boquita reef in 2010, Islas-Peña et al. (2013) observed that Pocillopora survival was affected by bioerosion effects attributed to invertebrates, such as the sponge Amphimedon texotli sp., which grows as tubes between coral branches and protrudes more prominently in dead coral and rocks. Abundant species of fish identified in that study included Chaetodon humeralis, Stegastes acapulcoensis, and Sufflamen verres. In our study, S. acapulcoensis, Thalassoma lucasanum, Holacanthus passer, and Microspathodon dorsalis were the most abundant species. According to López-Pérez et al. (2012), in their study of reef fish in Oaxaca, Mexico, S. acapulcoensis and T. lucasanum accounted for 59% of the population. A similar abundance (56%) was reported by Galván-Villa, López-Uriarte and Arreola-Robles, (2011) in their analysis of Tenacatita Bay, Jalisco, Mexico. S. acapulcoensis and M. dorsalis are corallivorous (Galván-Villa et al., 2011) and were suggested by both authors to account, at least in part, for the observed adverse changes in the respective coral populations and therefore the loss of coral cover. In our study zone, about 270 meters from the coral community, there is fixed fishing gear (Daibo-Ami type) that operates continuously for nine months a year. This fishing gear can catch between 100-600 kg daily, with an abundance of species between seven and 32 (Espino-Barr, Jiménez-Quiroz, Granados-Montes de Oca, & Garcia-Boa, 2006). This type of fishing gear is known for not discriminating with regard to fish size. Therefore, we consider this fishing gear to be a factor that impacts not only the abundance of species, but also the fish diversity of this coral community.
Our observations strongly point to fluctuations in and/or high levels of nutrients in La Boquita community, contributing to the high level of photosynthetic production and high zooxanthellae density, as well as the proliferation of algae-type grass in C1. These factors may have contributed to reduced coral calcification, leading to a reduced skeletal density, worsening bioerosion, and ultimately coverage loss (Bartley, Speirs, Ellis, & Waters, 2012; Risk, 2014).
The main evidence for deterioration in La Boquita coral community is the loss of coverage. Liñán-Cabello et al. (2008) reported a 7% decrease in 2007, an amount that according to our observations taken during the same sampling period, has now reached 17%. The most dramatically affected area is near the connection between the channel and Juluapan lagoon (C1 of the present study). Here, the status of the coral is poor, and the influence of nutrient-enriched waters and an increased sedimentary rate is the highest. Digital appendix 1 shows the transition zone between the slightly impacted coral, with signs of bleaching, and the area most strongly subjected to terrestrial runoff, where the coral is covered by sediments. According to Hallock (2012), these sediments do not initially negatively impact coral health, because the growth of bacteria and algae may stabilize the sediments and provide optimal conditions for the growth of coral-colonizing foraminifera.
Oxidative stress leads to bleaching and thus serves as a good indicator of the health of coral populations subjected to environmental changes (Lesser, 2006). However, both zooxanthellae and cnidarians have antioxidant defense systems that inhibit the formation of reactive oxygen species (ROS), which are produced during bleaching (Lesser & Shick, 1989; Lesser, 1996). Newly published studies have shown an association between increased ROS production, including the one caused by an increase in ROS-producing units (algal cells), and nutrient-driven alterations in the lipid compositions of zooxanthellae membranes (Cunning & Baker 2013; Wiedenmann et al., 2013).
However, there are also reports that suggest acclimatization to terrestrial runoff on the part of La Boquita coral community. It has been exposed to this runoff for the last 10 years, following the opening of the channel and thus the modification of the Juluapan Lagoon and Santiago Bay. In those studies, some of which involved in vitroexperiments with La Boquita specimens, the responses of the host and its symbiont to changes in pH, UV radiation, and temperature were investigated (Flores-Ramirez & Liñán-Cabello, 2007; Liñán-Cabello et al., 2008; 2010b; Soriano-Santiago, Liñán-Cabello, Delgadillo-Nuño, Ortega-Ortiz, & CuevasVenegas, 2013). The results provided evidence of a synchronous, short response time on the part of antioxidant enzyme activity in coral tissue, specifically by the zooxanthellae, which reduced the amount of cell damage.
The main anthropogenic disturbances from areas adjacent to La Boquita reef are wastewater discharges into the lagoon, tourist developments in the coastal zone, deforestation and erosion resulting from inappropriate development, and the nutrient runoff from agricultural lands around the lagoon. All these significantly contributed to the nutrient-enriched waters of the lagoon, especially in summer, with negative effects on the coral community. Because the lagoon remains in constant communication with Santiago Bay throughout the year, and despite potential physiological adjustments by the coral community, the shading effects, the large sediment load, and the high primary productivity; may act synergistically to potentiate the effects of the bioerosion and burial of the coral, which results in a major loss of coverage.
We identified the need for preventive diagnostic studies to determine the state of stress in coastal coral communities from a multi-disciplinary perspective, including the practice of population assessments, such as the presence of certain species indicating an imbalance in the ecosystem; the use of biochemical/molecular tracers; and the importance of nutrients such as phosphate, nitrogen and their relationship to the abnormal growth of coral. Future studies must incorporate multiple visions to improve our understanding to identify methods and sites with higher potential for success in terms of restoration actions. Our findings highlight the need of appropriate coral reefs conservation policies and integrated coastal development management for the Mexican Pacific Coast.
