Introduction

Tooth extraction remains a common treatment option in dentistry. However, with the increasing demand for esthetics, especially in the maxillary anterior area, simple extraction is no longer sufficient. Replacement and rehabilitation have become more important and urgent. Dental implants have become the standard for replacing missing teeth or teeth with poor prognosis. Although they were originally used mainly for fixing complex prostheses, in recent years they have been quite successful in replacing a single tooth, especially in the esthetic zone. To ensure the durability and clinical success of an implant, osseointegration is essential. This process allows the implant to bond firmly to the bone and to be asymptomatic during functional stresses (¹).

To achieve a natural-looking implant-supported restoration, some experts have stressed the importance of presurgical planning, while others have emphasized proper implant placement. The need to preserve both hard and soft tissues has increased due to the constant pressure for esthetically appealing results. Alveolar bone loss following tooth extraction and implant placement can create significant problems with unfavorable esthetic consequences. Various investigations have revealed a loss of up to 50% in bone resorption width, as well as a decrease in height of 2-4mm, or an average of 1.24mm. However, this resorption process is highly unpredictable (²).

For many years, bone grafts and bone substitutes have played a crucial role in medicine. Their application in dentistry has seen a surge due to the progression of dental implantology and the necessity to mend craniofacial bone defects (³). The successful insertion of dental implants is contingent upon adequate alveolar bone dimensions. It’s projected that nearly half of all dental implant procedures necessitate the use of bone grafts (⁴). Bone grafts are usually used to provide support, to fill gaps. These are classified into three groups: bone grafts (autograft or xenograft), ceramics/synthetics (hydroxyapatite and tricalcium phosphate) and growth factors (demineralized human bone matrix) (⁵).

In the repair of bone injuries, including orthopedic or dental defects, cells and growth factors are utilized to hasten the creation of new bone structures. In certain instances, grafts are necessary to substitute the injured tissue and establish a robust link between the implant and the host bone.

Autogenous grafts are the preferred option due to their osteogenic or osteoinductive properties (⁶). Regeneration entails the complete recovery of damaged tissue to its initial state through various surgical strategies and techniques, such as guided bone regeneration and guided tissue regeneration. Growth factors play a key role in these processes, controlling cell growth and differentiation, as well as wound healing and repair processes. They aid in the migration and proliferation of undifferentiated stem cells at the site of injury and may potentially stimulate the growth and differentiation of mesenchymal stem cells to accelerate bone repair (⁷,⁸).

Case report

This report details a clinical case involving a 32-year-old female patient who sought consultation for a fractured tooth, specifically tooth 22. Despite having no record of systemic diseases or notable medical conditions, an erythematous region was detected in the vestibular area during the local clinical examination of tooth 2.2 (Figure 1). Based on this finding, additional examinations were conducted using panoramic radiography and tomography.

The tomographic analysis revealed the presence of a chronic periapical lesion in tooth 2.2, as well as a cervical fracture in the same (Figure 2). Based on these findings, a treatment plan was formulated that involved extraction of the tooth and placement of a post extraction implant with immediate non-functional loading. In addition, guided bone regeneration was included to address bone loss and ensure implant stability.

Surgery was performed in a minimally invasive manner, following an atraumatic extraction technique with a root traction device (Figure 3 and Figure 4). The absence of a flap allowed for reduced surgical invasiveness and, consequently, promoted better healing and a faster recovery process. Placement of the implant, a 3.75 x 10mm Dentoflex® with indexed Morse taper, was performed following the manufacturer's recommended drilling protocols and sequences (Figure 5). The primary stability of the implant, with a torque of 37 Newtons, allowed immediate placement of a prefabricated metal abutment for the cemented crown technique.

To address soft tissue loss and optimize final esthetics, guided bone regeneration was performed in the interimplant space (Figure 6). Given the patient's thin gingival phenotype, a connective graft was implemented to ensure adequate stability and formation of the gingival tissues without the need for suturing (Figure 7). The gingival margin conformation and papillary appearance were clinically evaluated and confirmed through controls at 7, 14 days and after four months.

To ensure postoperative comfort and prevention of possible infections, diclofenac and amoxicillin were prescribed. The patient was followed closely in the weeks and months there- after, allowing a detailed assessment of recovery and tissue adaptation. A follow-up CT scan at four months demonstrated adequate gingival margin conformation and a papillary appearance that met the esthetic and functional goals of treatment (Figure 8 and Figure 9).

Overall, this case exemplifies the importance of a planned, multidisciplinary approach to oral rehabilitation. The combination of atraumatic extraction techniques immediately loaded implant placement, guided bone regeneration and connective grafting allowed successful results in terms of stability, function, and esthetics, reaffirming the relevance of careful planning and execution in implant procedures.

Figure 1 Root remnant prior to extraction.

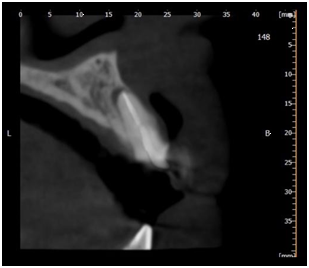

Figure 2 Diagnostic tomography

Figure 3 Minimal atraumatic exodontia.

Figure 4 Extracted tooth.

Figure 5 Post extraction implant placement.

Figure 6 Bone filler in the vestibular gap.

Figure 7 Soft tissue graft placement.

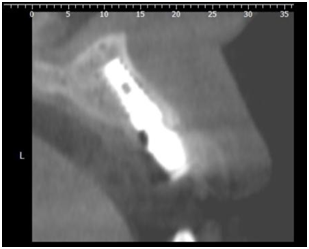

Figure 8 Control tomography.

Figure 9 Soft tissue and hard tissue stability and recovery.

Discussion

Dental implant therapy has progressed to incorporate procedures involving soft tissue grafting, which are increasingly favored due to their capacity to enhance biological, functional, and aesthetic outcomes (⁹). These periodontal plastic surgical procedures are vital in creating a health-promoting environment (¹⁰). Despite some debate in scientific literature about the necessity for increased keratinized tissue width or mucosal thickness at implant sites, evidence indicates that these procedures can significantly contribute to peri-implant health (¹¹).

Conversely, implants that are immediately loaded post-extraction have set a benchmark in dental restoration, providing a swift and efficient solution for rehabilitation following tooth loss. The amalgamation of this technique with guided bone regeneration using connective grafts has surfaced as a comprehensive strategy that tackles the issues of tooth loss, promising enduring and satisfactory results for patients (¹²). Placing an implant immediately after tooth extraction aids in preserving the bone and gingival architecture, which is essential for the aesthetic and functional success of the implant. However, this technique necessitates primary implant stability and meticulous management of gingival recession to prevent long-term complications (¹³).

When guided bone regeneration is employed alongside connective tissue grafting, it enhances the quality of the soft tissue surrounding the implant, leading to improved integration. This combination of techniques provides a comprehensive solution that caters to both the need for immediate function and long-term aesthetics (¹⁴). The integration of immediate-loaded post extraction implants with connective graft-guided bone regeneration signifies an advanced approach in contemporary dentistry. While it promises superior outcomes, it is crucial for practitioners to conduct detailed planning and adhere to strict protocols to ensure the success of the treatment (¹⁵).

Free gingival grafting (FGGT), which consists of soft tissue harvested from the palate along with the overlying epithelium, has become established as a technique for retrieving or augmenting missing keratinized tissue. This methodology was pioneer in its application for this purpose. The findings of various investigations have evidenced a reduction in the dimension of the graft materials after their placement, although they stand out for their efficacy in extending the extension of the keratinized tissue. However, this technique can lead to increased morbidity during the surgical procedure, as well as differences in the shade of the grafted tissue compared to adjacent tissues (¹⁶).

Evidence strongly supports the use of autologous soft tissue grafts in surgical and peri-implant procedures to optimize both tissue health and appearance. The free gingival grafting technique is widely recognized for its efficacy in increasing soft tissue thickness around teeth and implants. However, connective tissue grafts stand out for their high predictability in achieving complete coverage of tooth roots or areas of tissue dehiscence, thus contributing to superior esthetics. Both adequate tissue thickness and the presence of keratinized tissue are considered key elements in maintaining optimal peri-implant health and promoting soft tissue augmentation in the implant environment (¹⁷).

Finally, it is important to consider some restrictions in procedures such as immediate post- extraction dental implant placement and bone regeneration with the aid of connective tissue grafts. These processes require detailed patient selection based on the condition and amount of remaining bone. In addition, there is the risk of mucosal recession around the implant and the challenge of achieving adequate soft tissue contouring. These factors are crucial to the proper integration of the implant to the bone and its final esthetic appearance, making a thorough evaluation essential to ensure the long-term success of the treatment.

Conclusion

This report emphasizes the significance of a multidisciplinary approach and the use of innovative techniques in the management of dental fracture cases with periapical lesions. Post- extraction implant placement and guided bone regeneration, along with meticulous attention to detail, proved to be a viable option for achieving satisfactory clinical and esthetic results.
