1. Introduction
Educational centers manage the education and training of new professionals worldwide, and they must keep the integrity of user information safe and protected from cybersecurity attacks in their academic environments. Therefore, this paper aims to analyze the cybersecurity vulnerabilities and threats presented by a laboratory environment in an educational setting, as well as the security measures to be implemented. The results of the analysis will be used to propose recommendations to improve security in a virtual laboratory environment.
Specifically, this study evaluates the cybersecurity systems in academic environments taking as a case study the laboratories of the Salesian Polytechnic University (Universidad Politécnica Salesiana: UPS) in its four main websites, showing vulnerabilities and threats found using the Kali Linux operating system and the tools Nessus and Mozilla Observatory (1).
The choice of Kali Linux in the cybersecurity arena is underpinned by its reputation as a highly specialized operating system, backed by a wide range of integrated tools that have been specifically developed to perform comprehensive penetration testing and thorough security analysis (2). This platform has set up itself as an industry standard due to its ability to address the unique challenges faced by cybersecurity professionals and technicians, offering a combination of versatility and effectiveness in detecting and mitigating vulnerabilities (3). Its use is also justified by its specialization and integrated toolset for penetration testing and security analysis. It provides a stable and reliable platform for activities such as vulnerability assessment, security audits, and penetration testing, offering indispensable resources for professionals in this field (4).
In addition, Nessus is a widely used tool in the field of cybersecurity, it stands out in this field for its comprehensive ability to detect vulnerabilities in systems and networks, covering even those very simple technical situations that could be exploited by malicious attackers, thanks to its ability to schedule scans and the generation of detailed reports on the events found in the study scenario (5). Its advanced features, such as scan scheduling and detailed report generation, make it a versatile and powerful tool (6).
Additionally, Mozilla Observatory, with its specialized focus on the web and its ability to detect and counteract a wide range of threats, is positioned as an indispensable tool to protect sensitive user information, essential in identifying vulnerabilities in websites by providing real-time analysis and recommendations to strengthen the security of the problems found during the analysis of vulnerabilities (7). Its web-oriented approach and its ability to show and mitigate threats make it a valuable tool for protecting users' information (8).
These network and web monitoring tools have proven to be highly effective and widely recognized in the field of cybersecurity, which has given them a solid reputation due to their ability to identify and assess vulnerabilities in systems and networks with accuracy and reliability. This is why these tools (Kali Linux, Nessus, and Mozilla Observatory) are essential for the development of this project. The efficiency, familiarity, and experience of the user community with these tools guarantee an effective implementation and a correct interpretation of the results obtained, which contributes to the credibility and validity of the research findings (9).
The choice to use exclusively the tools implemented in this work for the vulnerability scanning study is based on various key factors. These tools have proven to be highly effective and recognized in the cybersecurity field. Also, by limiting the scope to these specific tools, consistency and comparability of the results obtained are ensured, easing an accurate assessment of the effectiveness of the scanning techniques used (10).
That being said, the exponential increase in security attacks is having a considerable impact on today's systems, potentially triggering dangerous consequences. In this context, penetration testing appears as a crucial solution to mitigate the effect of such attacks. Therefore, the main purpose of this article is to detail both the technical and non-technical aspects of penetration testing (11).
In today's era of increasing digitalization, information is available to everyone through computing and mobile devices. This advancement has introduced useful and efficient technologies and services into everyday life, such as web applications, cloud computing, online communication platforms, and e-commerce, among others. While a handful of users access this information with legitimate intentions, others seek ways to gain unauthorized access to destroy or steal valuable data, either from a website or from a physical environment. It is commonly known that the term ''penetration testing'' also refers to ''ethical hacking'' (12).
In contemporary society, where every interaction, conversation, and transaction can be checked, found, and analyzed, there is a growing concern for security, especially about the concept of ethical hacking. Despite the benefits brought by the digital era, it has also led to unintended consequences, such as the increase of hacking incidents in social networks, bank accounts, and data theft, among others, which supports the methods and analysis tools chosen in this study (13).
For a better understanding of cybersecurity concepts, it is important to note the following concepts.
Cybersecurity in Web Systems
Cybersecurity refers to the protection of computer systems, networks, and data against attacks, damage, or unauthorized access. In the context of web systems, this includes defending against threats that can compromise the integrity, confidentiality, and availability of online services (14).
Vulnerability Management
The ongoing process of identifying, assessing, addressing, and reporting vulnerabilities in an organization's systems and applications. Its goal is to reduce the risk of exploitation of such vulnerabilities by malicious actors, ensuring that threats are mitigated before they can be exploited.
CVSS (Common Vulnerability Scoring System)
An open standard is used to assess the severity of vulnerabilities in software systems. CVSS provides a numerical score (from 0 to 10) that reflects the relative risk of a vulnerability, helping to prioritize corrective actions according to the threat level (15).
CVE (Common Vulnerabilities and Exposures)
A list of public references that uniquely find known vulnerabilities in software and hardware. Each CVE is associated with a unique identifier and is used to document and communicate vulnerabilities, helping coordination between organizations to apply solutions.
Impact on the Availability of IT Resources
Failure to properly track and manage vulnerabilities can lead to the exploitation of critical flaws, resulting in the interruption of services, loss of data, and security compromises. This directly affects the availability of IT resources, as successful attacks can degrade or completely disable affected systems, negatively affecting operational continuity (15).
According to the Threat Metrix Cybercrime Report, the COVID-19 pandemic has highlighted the vulnerabilities of the digital space in Latin America and the Caribbean, where increased digital activity has made the region a hotspot for fraud, especially account creation. With millions of inexperienced users connecting to the Internet every year today with IoT applications, including those related to education, many of them without sufficient technological capabilities, the risk of cyberattacks has increased, making the region an important target and source of these attacks (16). This growth in cyber threats has generated greater interest in cybersecurity, with a notable increase in searches and demand for courses and training on the subject, reflecting a growing awareness of the importance of protecting oneself in the digital environment (17).
Despite the lag in cybersecurity in Latin America and the Caribbean, the ''Cybersecurity Report 2020'' of the OAS (Organization of American States) and the IDB (Inter-American Development Bank) shows considerable progress in the last four years. The evaluation, based on 49 indicators, reveals that the region has improved its cybersecurity average to 39.88 points. Countries such as Brazil, Chile, Colombia, Uruguay, and Mexico stood out with notable advances. However, Mexico faced serious cyber incidents in 2019 and 2020, showing a lack of resilience to attacks, despite reported improvements. These events highlight the urgent need to strengthen cybersecurity capabilities in the region through a robust national strategy and ongoing training (18).
Individual country efforts in Latin America to develop cybersecurity policies and capabilities are based on metrics and reports from the OAS and IDB (2016; 2020). Where a static view of the cybersecurity context in the countries of the region is provided, the OAS and IDB reports offer a dynamic analysis of its evolution. The method covers twelve indicators that include the development of cybersecurity policies, the protection of essential services, and the response to cyber incidents. Among these, eight are related to national security and foreign policy. Despite improvements in areas such as anti-cybercrime legislation and cyber incident response capabilities, significant challenges remain, as evidenced by some countries' low scores in developing critical cyber capabilities (19).
Types of confidential information in a virtual education environment:
-
1. personal information: personal data of students/collaborators (ID, home address, family references, health);
2. financial information: financial data such as payment methods, and credit/debit cards;
3. educational information: assignments, projects, academic history.
This information can be useful for attackers, who could use it to impersonate identities, commit financial fraud, and cause damage in the educational field. That is why this study evaluates the cybersecurity of the main websites of the study case to detect and examine vulnerabilities and threats.
2. Materials and methods
This study will consider the analysis as a case study of the Salesian Polytechnic University (UPS), which, according to the Rector's Accountability Report for the year 2023, has an enrollment of 24 776 students, of which 7 103 belong to degree programs at the Guayaquil campus. With this student population, the substantial amount of data managed by the university is evident, covering the personal information of students, digital repositories of projects and academic documents, grade histories, as well as financial and legal aspects linked to the corresponding department of the UPS.
The laboratories of the Salesian Polytechnic University are a critical environment where confidential information is handled, therefore, these laboratories must have security measures to protect students from cyberattacks and malicious people looking to steal their credentials. It is also important to mention that this is a quantitative and descriptive study, because the variables to be examined are vulnerabilities.
Domains to be audited
This analysis is based on recognizing and finding security breaches in the laboratory environment of an educational center, where students use the university's website to access their virtual environment (AVAC), so the case study domains to be audited are set up. These domains are presented below:
-
1. ''www.ups.edu.ec'': It is the official website of the Salesian University; therefore, it is a page regularly visited by students who wish to know their grades, make applications, visit the virtual library, and enter the AVAC.
2. ''cas.ups.edu.ec'': The acronym ''CAS'' is associated with ''Central Authentication Service,'' which is a protocol used for user authentication. Therefore, this domain provides access to an authentication system for students to access the university's online services.
3. ''virtual.ups.edu.ec'': The term ''virtual'' refers to a virtual environment used by UPS to provide study materials, discussion forums, and educational resources that complement students' studies.
4. ''dspace.ups.edu.ec'': The term ''dspace'' denotes the existence of a digital content management platform called DSpace which is an application designed to manage and preserve digital repositories. UPS uses this domain to store digital content such as scientific articles, theses, academic papers, research, and other resources (20).
In the context of vulnerability scanning with Nessus, each scale value stands for the level of risk associated with an identified vulnerability, in terms of its potential impact. These are the values:
-
1. Critical. These vulnerabilities are an extremely elevated risk, allowing remote code execution or full control of the affected system without prior authentication. They are a priority for immediate remediation.
2. High. Vulnerabilities that can be exploited to cause significant impact, such as access to sensitive data or service interruption. Their exploitation is relatively straightforward, and their impact is considerable, making them a high priority for mitigation (21).
3. Medium. These vulnerabilities can be exploited, but generally require more specific conditions or a higher level of access to the system. Although their impact is lower compared to the earlier ones, they can be used in conjunction with other vulnerabilities to increase the overall risk.
4. Low. Vulnerabilities that present a minimal risk, with limited impact, and are difficult to exploit. Although their resolution is less urgent, it is still important to improve the overall security of the system (21).
In addition, for the development of this exploration process, we have the following arguments to consider these tools as part of the method in this research. Both Kali Linux and Nessus are widely recognized and used tools in the cybersecurity community and their use ensures that the analysis is based on tools that have been evaluated and confirmed by experts. Kali Linux offers an extensive range of pre-installed security tools, allowing for a comprehensive assessment of system security from multiple angles, including network, system, and application analysis. Nessus, on the other hand, is known for its ability to find vulnerabilities at the software and configuration level with comprehensive coverage, ranging from server configuration flaws to specific application vulnerabilities (22).
Both tools are regularly updated to include the latest techniques and vulnerability definitions. Kali Linux is highly configurable and can be customized to suit the specific needs of the study, allowing the execution of custom scripts or the integration of new scanning tools. Also, Nessus offers flexibility through customized scanning policies, allowing detailed analysis according to the specific environment being assessed (23).
To evaluate the effectiveness of the tools used, a method structured in four phases will be followed: planning, data collection, data analysis, and presentation of results, as detailed below.
A) Planning Phase
The planning phase of the vulnerability analysis system involves the following activities:
1. Gathering of information on the case of analysis:
During this stage, a comprehensive collection of relevant information about the Salesian Polytechnic University (UPS) is conducted. This includes data on the technological infrastructure, computer systems, networks, web applications, and any other relevant information that may influence the security of the organization.
2. Tools and Techniques Selection:
In this activity, the most proper tools and techniques are selected to analyze vulnerabilities in the UPS. This involves evaluating different options available on the market, considering factors such as the specialization of the tools, their compatibility with the UPS environment, and their ability to find a wide range of vulnerabilities.
B) Data Collection Phase
The data collection phase of the vulnerability analysis system involves conducting the following activities:
1. Identification of Open Ports in the Case Study Systems:
During this stage, a comprehensive scan of Salesian Polytechnic University (UPS) systems is performed to name open ports and associated services. This provides an overview of the attack surface and helps detect potential entry points for malicious attacks.
2. Vulnerability Assessment of Institutional Websites:
In this activity, a detailed assessment of the vulnerabilities present in UPS institutional websites is conducted. This includes the search for common vulnerabilities, such as SQL injections, XSS (Cross-Site Scripting) vulnerabilities, and other possible points of exploitation that may compromise the security of the websites.
3. Analysis of Private Documentation and its Exposure:
During this stage, private UPS documentation is analyzed to show potential exposure to confidential information. This may include documents stored on internal servers, shared file repositories, or any other location where sensitive information may be stored and potentially exposed to unauthorized access.
4. Identification of Vulnerabilities that Have Allowed Unauthorized Access:
In this activity, vulnerabilities that have allowed unauthorized access to UPS systems are investigated and documented. This includes analyzing earlier security incidents, identifying the root causes of the attacks, and recommending
C) Data Analysis Phase
The data analysis phase of the vulnerability analysis system involves conducting the following activities:
1. Processing and Analysis of the Collected Data:
The information gathered during the earlier phase is processed and analyzed during this stage. This may include the review of scan logs, penetration test results, and vulnerability analysis reports, among others. The goal is to show significant patterns, trends, and findings that help to understand the current security posture and possible areas for improvement.
2. Identification and Classification of Vulnerabilities and Threats:
In this activity, vulnerabilities and threats detected during the information analysis are found and classified. This involves categorizing vulnerabilities according to their type, severity level, and potential impact on the security of the organization's systems and networks.
3. Evaluation of the Severity of the Vulnerabilities Detected:
During this stage, the severity of the vulnerabilities detected is assessed using predefined criteria, such as CVSS (Common Vulnerability Scoring System) or other industry standards. This allows for prioritizing mitigation actions and distributing resources efficiently to address the most critical and urgent vulnerabilities. In addition, specific recommendations are provided to remediate each identified vulnerability and improve the overall security posture of the organization.
D) Presentation of Results Phase
The presentation of results phase of the vulnerability analysis system includes the following activities:
1. Presentation of Research Results:
During this stage, the results obtained during the vulnerability analysis are presented clearly and concisely. This includes details on the vulnerabilities found, their severity, the systems or areas affected, and any other relevant findings. Graphs, tables, and other visual resources are used to help the understanding of the information by stakeholders.
2. Detailed Discussion on the Implications of the Vulnerabilities:
In this activity, a thorough discussion is conducted on the implications of the vulnerabilities detected in the case study of the Salesian Polytechnic University. The potential impact of these vulnerabilities on the security of UPS systems and networks, as well as on the integrity and confidentiality of sensitive information, is analyzed.
3. UPS Cybersecurity Mitigation and Enhancement Proposals:
During this stage, concrete proposals are presented to mitigate the identified vulnerabilities and improve cybersecurity at UPS. These recommendations include implementing security patches, updating network configurations, access policies, and personnel training, among other measures.
The summary of the method proposed for this work is presented in TABLE I below.
Table I Project method
| Vulnerability analysis in an education environment | |
| Sections | Activities |
| Planning Phase | Gathering Information on the UPS. |
| Choice of Tools and Techniques. | |
| Identification of Open Ports in UPS Systems. | |
| Evaluation of Vulnerabilities in Institutional Web Sites. | |
| Data Collection Phase | Analysis of Private Documentation and its Exposure. |
| Identification of Vulnerabilities that have allowed unauthorized access. | |
| Processing and Analysis of Collected Information. | |
| Data Analysis Phase: | Identification and Classification of Vulnerabilities and Threats. |
| Evaluation of the Severity of the vulnerabilities Detected. | |
| Results Presentation Phase | Presentation of the Research Results. |
| Detailed discussion on the Implications of Vulnerabilities. | |
| Proposals for Mitigation and Improvement of Cybersecurity at UPS. |
Evaluation model for security posture
The current work presents a vulnerability scan, based on the robustness and versatility of the Kali Linux operating system, combined with the use of recognized tools such as Nessus and Mozilla Observatory.
This comprehensive solution is proposed as an effective method to conduct an exhaustive security assessment of systems and websites. Through this combination of tools, the prototype provides a detailed and comprehensive view of potential risks, as well as recommendations to strengthen the security posture of the assessed infrastructures. This approach provides an initiative-taking strategy to mitigate risks and ensure the protection of critical information assets in increasingly complex and dynamic technology environments.

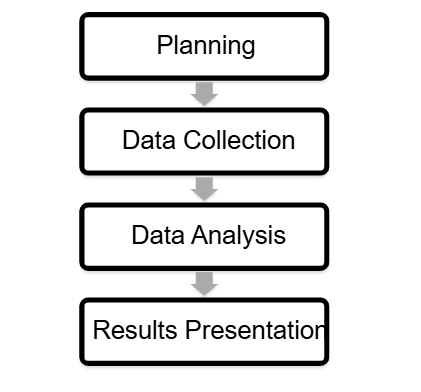

The flowchart of the analysis prototype is as follows, shown in Fig. 1.
The tools used and the process for performing the vulnerability scan are described below.
Mozilla Observatory Scanning
This study incorporates a comprehensive approach to analyzing the security of a specific domain, using the Mozilla Observatory tool. This tool, developed by Mozilla, has become a standard in the evaluation of a website's security configuration, providing a score based on digital security best practices.
The security assessment using Mozilla Observatory offers a detailed view of the robustness of the security practices implemented in the domains ''ups.edu.ec'', ''virtual.ups.edu.ec'', ''dspace.ups.edu.ec'', and ''cas.ups.edu.ec''. The rating obtained is based on multiple aspects, including HTTPS configuration, implementation of content security policies (CSP), and management of security headers, among others.
Vulnerability Scanning with Nessus
Nessus is a flexible tool widely used in cybersecurity due to its ability to detect vulnerabilities in systems and networks. Scan scheduling and report generation features are among its advanced functions (24).This tool offers a vulnerability report based on the CVSS (Common Vulnerability Scoring System) standard providing a numerical score standing for the severity of a vulnerability on a scale from 0 to 10, where 0 shows a non-critical vulnerability and 10 indicates a critical vulnerability (24).Nessus was used to scan for vulnerabilities in the web ''pages ups.edu.ec'' and ''virtual.ups.edu.ec'' with IP addresses 45.235.140.7 and 34.231.199.89, respectively.
Credential Theft Using Social Engineering and Phishing Techniques
Phishing can take various forms, from fraudulent emails to fake websites, and its impact on digital security is undeniable, affecting individuals, organizations, and educational institutions alike (25).Social Engineering Attacks are techniques used to trick people into revealing confidential information. In this case, these techniques are used to obtain access credentials to the UPS website (26).For this section, cloning of the UPS credentials access website is conducted, as well as spoofing and phishing techniques to send institutional emails with malicious content. This process is performed with the Kali Linux operating system and the Toolkit tool.
3. Results analysis
A) Vulnerability Analysis and Reporting with Nessus
First, Nessus is used to scan for vulnerabilities on the website ''www.ups.edu.ec'', with IP address 45.235.140.7. At the end of the scan, Nessus provides a detailed report of the results, as shown in Fig. 2, from which we obtain: 1 high vulnerability (High), 3 medium vulnerabilities (Medium), and 37 recommendations (Info).
The second site analyzed is ''virtual.ups.edu.ec''. Then, the scan is performed on the address ''virtual.ups.edu.ec'', with IP address 34.231.199.89. Once the scan is done, the Nessus report details the following: 2 critical vulnerabilities (Critical), 2 high vulnerabilities (High), 5 medium vulnerabilities (Medium), 2 low vulnerabilities (Low), and 40 recommendations (Info), as shown in Fig. 3.
Table II Nessus vulnerabilities results
| Danger level | Domain | Vulnerability | CVSS |
| Critic | virtual.ups.edu.ec | PHP Unsupported Version Detection. | 10 |
| Critic | virtual.ups.edu.ec | PHP Remote Code Execution (CVE-). | 9.8 |
| High | ups.edu.ec y virtual.ups.edu.ec | SSL Medium Strength Cipher Suites Supported (SWEET32). | 7.5 |
| High | virtual.ups.edu.ec | PHP Multiple Vulnerabilities (CVE-). | 7.5 |
| Medium | virtual.ups.edu.ec | HSTS Missing from HTTPS Server. | 6.5 |
| Medium | virtual.ups.edu.ec y ups.edu.ec | TLS Version 1.0/1.1 Protocol Detection and Deprecation. | 6.5 |
| Medium | virtual.ups.edu.ec | JQuery Multiple XSS (CVE-). | 6.1 |
| Medium | virtual.ups.edu.ec | PHP Email Header Injection (CVE-). | 5.3 |
| Medium | ups.edu.ec | nginx Information Disclosure (CVE-). | 5.3 |
| Low | virtual.ups.edu.ec | SSH Weak Key Exchange Algorithms Enabled. | 3.7 |
| Low | virtual.ups.edu.ec | SSH Server CBC Mode Ciphers Enabled. | 2.6 |
B) Mozilla Observatory Scanning Results
In the interpretation of the results obtained from the analysis with Mozilla Observatory for the UPS domains, it is seen that several security aspects have been favorably addressed. The findings for each category are highlighted below.
1. Favorable Results
After conducting a thorough evaluation through Mozilla Observatory in the four main domains of the UPS, highly favorable results have been found, as detailed in TABLE IIIbelow.
Table III Favorable results of the scan with mozilla observatory
| Test | Domain | Evaluation |
| Cookies | UPS.EDU.EC VIRTUAL.UPS.EDU.EC DSPACE.UPS.EDU.EC | The use of the Secure flag ensures that cookies are transmitted exclusively over secure connections, while the HTTP Only flag helps prevent scripting attacks, thus strengthening cookie protection (27). |
| Cross-origin Resource Sharing | UPS.EDU.EC VIRTUAL.UPS.EDU.EC DSPACE.UPS.EDU.EC CAS.UPS.EDU.EC | Proper CORS configuration shows that content is not visible through files or resource-sharing headers between sources. This helps prevent security risks associated with cross-domain requests (28). |
| X-Content-Type-Options | UPS.EDU.EC VIRTUAL.UPS.EDU.EC DSPACE.UPS.EDU.EC | The X-Content-Type-Options header is set to ''no sniff'', which helps prevent MIME sniffing attacks, ensuring that the browser interprets the content type correctly (29). |
| X-XSS-Protection | UPS.EDU.EC VIRTUAL.UPS.EDU.EC DSPACE.UPS.EDU.EC CAS.UPS.EDU.EC | The X-XSS-Protection value on ''1'' shows that the browser is configured to activate the anti-XSS filter, helping to prevent cross-site scripting attacks and protecting against possible malicious code injections (30). |
| X-Frame-Options | DSPACE.UPS.EDU.EC | The presence of established X-Frame-Options such as SAMEORIGIN or DENY means that measures are taken to prevent clickjacking attacks by controlling how content is embedded in frames. This improves security by preventing possible manipulation of the user interface (31). |
| Redirection | VIRTUAL.UPS.EDU.EC DSPACE.UPS.EDU.EC CAS.UPS.EDU.EC | The first redirection from HTTP to HTTPS on the same host, with the final destination being HTTPS, reflects good security practices. This measure helps to ensure secure connections and prevent possible attacks based on redirection manipulation (32). |
Table IV Unfavorable results of the scan with mozilla observatory
| Evaluate | Domain | Evaluation |
| Content Security Policy | UPS.EDU.ECVIRTUAL.UPS.EDU.EC DSPACE.UPS.EDU.ECCAS.UPS.EDU.EC | The absence or inadequate configuration of the Content Security Policy (CSP) could leave the site vulnerable to code injection attacks (33). |
| HTTP Strict Transport Security | UPS.EDU.ECVIRTUAL.UPS.EDU.ECDSPACE.UPS.EDU.EC CAS.UPS.EDU.EC | Failure to implement HTTP Strict Transport Security (HSTS) could leave the site exposed to downgrade and man-in-the-middle attacks (34). |
| Redirection | UPS.EDU.EC | Improperly configured redirection can introduce vulnerabilities, especially if the first HTTP to HTTPS redirection is to a different host (34). |
| Subresource Integrity | VIRTUAL.UPS.EDU.ECDSPACE.UPS.EDU.EC | Failure to implement Subresource Integrity (SRI) leaves the site susceptible to security risks related to the integrity of the external resources (35). |
| X-Content-Type-Options | CAS.UPS.EDU.EC | Incorrect configuration of the X-Content-Type-Options header can introduce security risks, allowing possible attacks based on content type manipulation (35). |
| X-Frame-Options | CAS.UPS.EDU.EC | Lack of X-Frame-Options configuration or inadequate configuration may expose the site to clickjacking attacks (36). |
The detailed interpretation of each favorable category highlights the strong security practices adopted in the assessed domains, providing a robust foundation for continued cyber security at Salesian Polytechnic University.
2. Unfavorable Results
After the exhaustive evaluation by Mozilla Observatory in the four main domains of the UPS, certain unfavorable aspects clearly require immediate attention to strengthen the security of the websites, as detailed in TABLE IV below.
The detailed interpretation of each unfavorable category offers valuable guidance to direct the necessary corrective actions and improve the safety posture of the assessed domains.
C) Credential Theft Using Social Engineering and Phishing Techniques
The term phishing derives from the similarity with fishing for confidential information using deception, presenting itself in multiple variants, from misleading emails to fake web pages affecting both individuals and organizations (18) .Social Engineering Attacks are techniques used to trick people into revealing confidential information. In this case, these techniques are used to obtain login credentials to the UPS website (19) .
1. Website Cloning
Kali Linux Tool Kit tool is used to perform cloning of the UPS credential authentication website. Website cloning is a simple and widely used practice by phishing attackers who use social engineering to cover up credential theft.
The next phase is to steal the access credentials to the university's digital sites, this process consists of a series of steps explained below:
a) Clone UPS website:
Using Tool Kit, the website ''cas.ups.edu.ec'' was cloned.

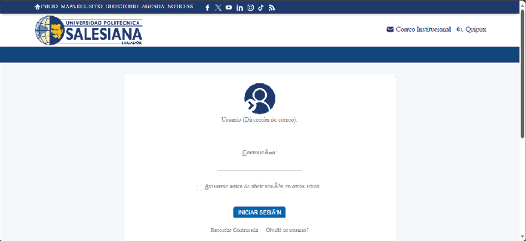

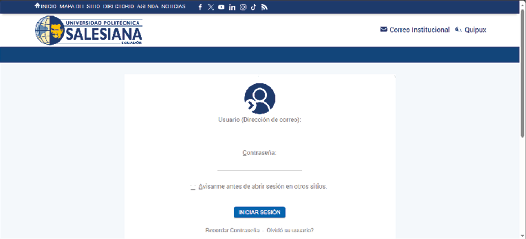

Fig. 4 shows a representation of the fake website compared to the original page of the case study. It is evident that it is the same as the original website shown in Fig. 5, which, in a hypothetical attack on users of the website, would generate an intrusion to the access credentials and other sensitive data.
b) Using social engineering to get UPS personnel to enter their login credentials on the fake website:
It involves using social engineering and techniques such as phishing in order to get the fake website to the victim and make them enter their login credentials.
c) Collect the information entered on the fake website:

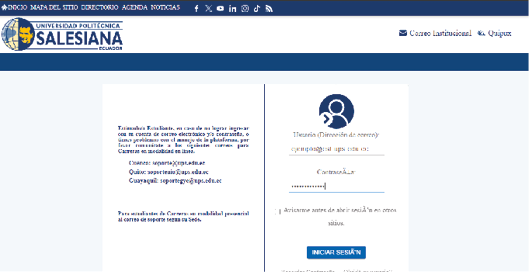

The victim enters his credentials into the fake website as shown in Fig. 6.
Once the victim enters his username and password and presses ''Login'', these credentials reach the intrusion system on the designated console, as shown in Fig. 7, generating a security leak.
As an example, in Fig. 6 the credentials ''ejemplo@est.ups.edu.ec'' were entered and in password: ''password123''. As shown in Fig. 7, the Tool Kit found the credentials entered by the victim and displayed them in the console, this being an effective proof of a failure of the system analyzed during this study.
2. Phishing Attack:
With all the information obtained previously, a phishing test is conducted via email, impersonating the domain ''notificacionesgye@ups.edu.ec'' using spoofing techniques. The attack is conducted in the following stages:
a) Information gathering:

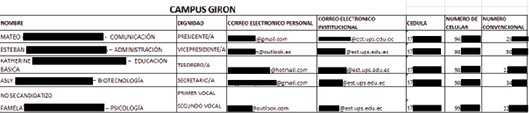

In this stage, information is collected from the victims. For this project, this information was obtained through Google Dorks, as shown inFig.8 . A list of students was obtained, where private information such as full names, career, ID, cell phone number, and personal and institutional mail was found, thus proving the vulnerability of the institution to access sensitive user data and its subsequent exploitation and attacks on these accounts or networks.
b) Spoofing for identity theft:

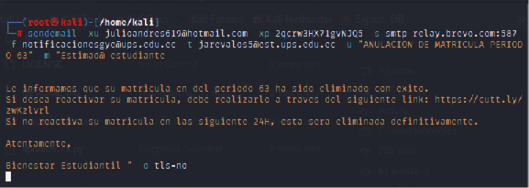

In this part, the domain and sender impersonations are performed. The domain ''ups.edu.ec'' is used to make the email appear to be legitimate from a university authority. The sender used by UPS to send notifications to students (''notificacionesgye@ups.edu.ec'') is utilized. This increases the success rate of phishing mail. Also, to use spoofing in Kali Linux, the ''send email'' tool is used, which has abundant commands that are necessary for this purpose. Once the commands are ready, the phishing mail is sent, as shown in Fig. 9.
c) Sending phishing emails:

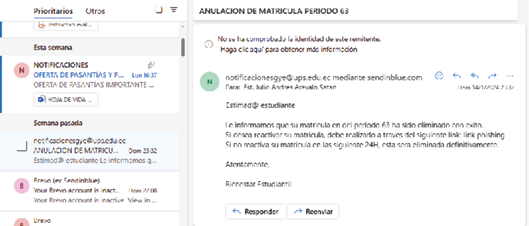

Once the previous steps are completed, the phishing mail is sent, as shown in Fig. 10. As it was said before, the sender is ''notificacionesgye@ups.edu.ec'' and the recipient would be the users of the list of students obtained in Google Dorks. However, following the guidelines of ethical hacking, the email of the authors is used to perform this scenario.
This exercise proved how users can be susceptible to manipulation techniques, highlighting the need for ongoing education on finding potential phishing threats. In addition, it underlines the importance of implementing initiative-taking security measures, such as email filters and phishing detection systems, to mitigate the risk of users falling into cyber traps.
Analysis of vulnerabilities in the university websites reveals issues that could severely affect the academic community. Identified deficiencies, such as critical PHP and security configuration weaknesses, could leave students and staff exposed to cyberattacks, including credential theft and exploitation of personal information. Analyses conducted with Nessus and Mozilla Observatory highlight both positive aspects and problem areas in website security, underlining the urgent need to implement corrective measures. The lack of robust policies and exposure to phishing techniques emphasize the importance of strengthening cybersecurity to safeguard the information and integrity of the university community. Taking into consideration that the security recommendations are essential to prevent vulnerabilities that could compromise the privacy and protection of all users, these results apply to any institution, not only in the academic field.

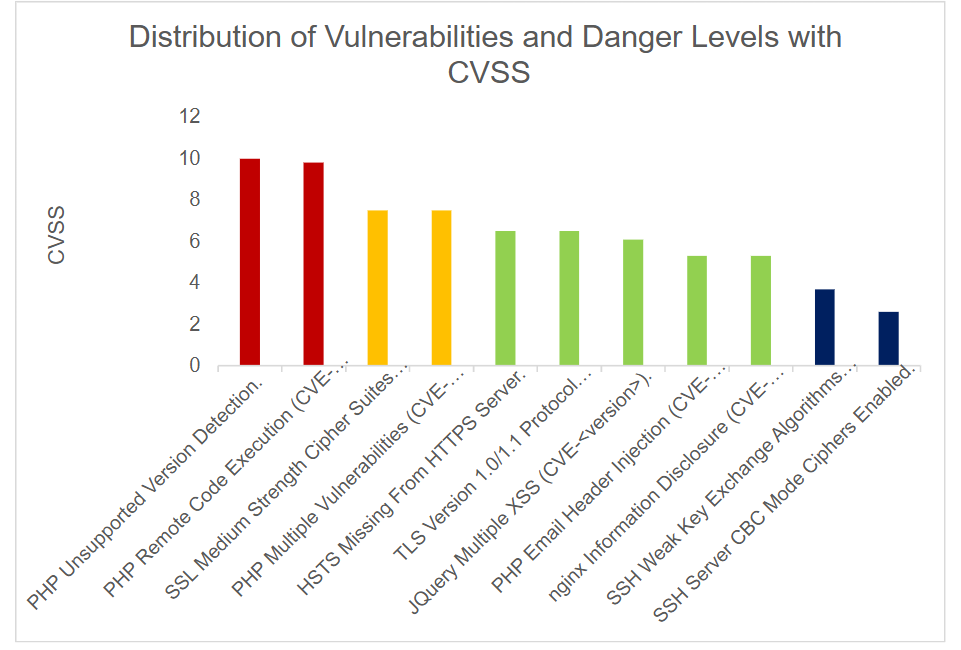

Fig. 11 presents a summary of the vulnerabilities detected in the domains ''virtual.ups.edu.ec'' and ''ups.edu.ec'', classified according to their level of danger and the Common Vulnerability Scoring System (CVSS). Two critical vulnerabilities are highlighted in the ''virtual.ups.edu.ec'' domain, including the detection of an unsupported version of PHP (CVSS 10) and the possibility of remote PHP code execution (CVSS 9.8), which reveals significant risks to system security. In addition, high-risk vulnerabilities are found, such as support for medium-strength SSL cipher suites (SWEET32) and multiple PHP vulnerabilities (both with a CVSS of 7.5), affecting both domains.
Vulnerabilities classified as medium-risk, such as the lack of HSTS on the HTTPS server and the detection of obsolete TLS versions, also represent considerable threats. Finally, low-risk vulnerabilities are shown, such as enabling weak algorithms for SSH key exchange and CBC ciphers on the SSH server, which, although less critical, are still important to address in order to strengthen the overall security of the system.
4. Discussion
Vulnerabilities found in the study include web defacement, SQL injection, XSS (Cross-Site Scripting) vulnerabilities, and directory listing issues (32). These represent significant risks to the security of the websites analyzed.
The present vulnerability analysis found that one of the analyzed websites had an XSS vulnerability, which allowed the execution of malicious scripts in the user's browser. An attacker could have exploited this vulnerability to steal confidential information or take control of user sessions on the analyzed website: the UPS portal.
The ''virtual.ups.edu.ec'' website also presented the XSS vulnerability, which is one of the most common web vulnerabilities according to the Internet Security Foundation (ISSF) in its Web Security Vulnerabilities Report 2022, which points out that XSS represented 50.9 % of all reported web vulnerabilities (33).
In (34), the authors found vulnerabilities in the Apache server, XSS (Cross-Site Scripting), untrusted SSL certificates, obsolete TLS protocols, and disclosure of internal IP addresses, among others.
It is interesting to note that when performing the security analysis in the domains ''ups.edu.ec'' and ''virtual.ups.edu.ec'', it was found that they presented the same vulnerability in terms of obsolete TLS protocols, indicating a common concern in the security of both platforms and that such protocols should be improved and updated.
According to the authors of (37), they found in their study vulnerabilities of the HTTP Server type, versions 5.4 - 5.4.42, they also detected several applications used in the web portal being executed with a very old version, which makes vulnerabilities easy to exploit and facilitates the intrusion of an attacker. In the present study, where vulnerabilities in the UPS website were also analyzed, the use of obsolete versions in several applications that are in operation was identified. These versions are a significant risk because they have vulnerabilities that could facilitate the intrusion of an attacker in the UPS system. Therefore, making the necessary software patches with their respective updates is suggested.
When compared with (38), there is a clear connection between the identification of vulnerabilities in websites and the need to prove contingency and response plans for cyberattacks in organizations. In our work, we highlight critical vulnerabilities such as Cross-Site Scripting (XSS) and the use of obsolete TLS protocols, which represent significant risks to the security of computer systems, particularly for the integrity of web platforms such as the UPS portal.
5. Conclusions
This research shows that the implementation of Kali Linux as a tool for detecting vulnerabilities allowed a comprehensive assessment of the security infrastructure of educational environments such as the Salesian Polytechnic University, managing to show a wide range of vulnerabilities that should be strengthened to minimize the risk of possible attacks.
After the analysis, it was possible to classify the vulnerabilities found according to their level of danger and their rating according to the CVSS standard, obtaining 2 critical vulnerabilities, 2 high vulnerabilities, and 6 medium vulnerabilities. Using this methodology allowed prioritizing mitigation actions focusing on the vulnerabilities with the highest impact.
The results of the research revealed that the virtual environment of the Salesian Polytechnic University is exposed to a series of cyber threats and, as in this case of analysis, the probability of having similar situations in other study centers is greater than 50 %, due to the low budget in infrastructure, software, and training of technical staff that manages these processes in the different academic institutions in the South American region. Therefore, it is crucial to have always updated control systems and trained administrators of the networks and websites in order to mitigate this problem and keep the educational environments and their users safe.
The implementation of Kali Linux using a 4-phase method had a significant impact on the evaluation and strengthening of security at the Salesian Polytechnic University. This approach allowed us to comprehensively find and classify the vulnerabilities detected, which helped the prioritization of corrective actions, focusing on those with the highest risk according to CVSS ratings. In addition to reducing risks, this strategy provided a structure that can be adapted and applied in other educational institutions with similar characteristics.
The relevance of this method in other educational settings is considerable, as countless institutions face familiar challenges, such as budget constraints and the need to improve the technical training of staff. Adopting this 4-phase approach in other institutions could enable a more accurate assessment of their IT security, helping to reduce risks and effectively protect users and sensitive information.
In Costa Rica, although it has been proven that cybersecurity is booming, there is no cybersecurity content in the curricula of universities. However, these institutions should consider options such as adding additional courses, adapting the existing structure or creating complementary programs to address the lack of cybersecurity training, essential to adequately prepare future professionals. This shows that in Latin America we are still in the process of developing academic projects to strengthen the security structures in educational and private environments (39).
In the future, it may be recommended to continue the research in larger educational entities and small business environments, following the methodology of this study. This will help to validate the approach in different contexts, identifying common patterns related to cybersecurity in order to generate mitigation measures applicable to such environments. In addition, this will make it possible to suggest security policies at the regional level to guarantee the service, while also analyzing the potential economic impact that this entails.
Roles of the authors
Holger Santillán: Conceptualization, Ideas, Research, Methodology, Project Management, Supervision, Validation, Writing – revision and editing.
Julio Andrés Arévalo: Research, Resources, Software, Writing – original draft.
Peregrina Wong: Methodology, Supervision, Research, Writing – revision and editing.
